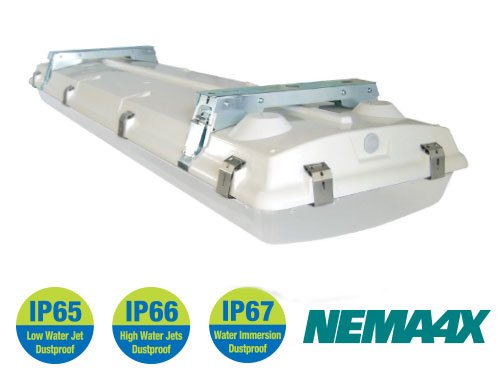

Blizzard EXT

Details

Features:

  • Effective Heat Management System Standard
    • 6T5-120V with HMS 45°C/113°F Max Ambient
    • 6T5-277V with HMS 50°C/122°F Max Ambient
  • Clear Acrylic Lens (Std) or Polycarbonate Lens (PC) Options
  • 95% Miro 4 Enhanced Aluminum Roll Formed Reflectors
  • V-Hooks for Chain or Cable Hanging (Standard)
  • Rigid Mounting Beam (RMBSS) option allows for:
    • Secure Ceiling Mount
    • Dual Pendant Mount
  • Marine Grade 316 Stainless Steel Latches(Std)
  • Fiberglass Body with Poured in Place Gasket
  • Housing Attributes:
    • IP65, IP66, IP67 (Dust Tight, Low Pressure Water Jets, High Pressure Water Jets, and Immerse 1M)
    • NEMA4, NSF Rated & 5VA Flame Rating
  • Cold Start Ballasts Rated Down to -20° F
  • ETL Wet Location Rated

Cut Sheet:

Blizzard EXT

IES Files:

BLEXT-4T5-UH.IES
BLEXT-4T5-UH-N.IES
BLEXT-4T8-UH.IES
BLEXT-4T8-UH-N.IES
BLEXT-6T5-UH.IES
BLEXT-6T5-UH-N.IES
BLEXT-6T8-UH.IES
BLEXT-6T8-UH-N.IES
