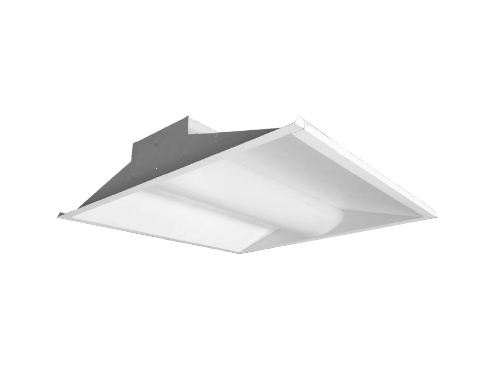

Vola

Certifications

Vola Details

    • Features:

      • Architectural Design
      • .040 Aluminum Pre-Painted Housing (Std.)
      • Post Paint Available
      • Frosted Acrylic Lens Easily Removes For Cleaning
      • 3500K & 4000K Color Options
      • 0-10V Dimmable Driver
      • Universal Voltage
      • ETL Damp Location Rated
      • 5 Year Warranty
      • DesignLights Consortium® Qualified Luminaire
    • Applications:

      • Schools
      • Hallways
      • Offices
      • Multipurpose Rooms

    Surface Mount Installation Guide

    NEMA Type “G” Installation Instructions

Part Number Watts Lumens Lm/W L70 CRI DLC PREMIUM CUT SHEET IES

VOLA14-16WLED-UNIV-40

161954120>100>80 /wp-content/uploads/2017/03/VOLA14.pdf/wp-content/uploads/2017/01/VOLA14-16WLED-UNIV-40-ies.ies

VOLA14-22WLED-UNIV-40

222744125>100>80 /wp-content/uploads/2017/03/VOLA14.pdf/wp-content/uploads/2016/11/VOLA14-22WLED-UNIV-40-ies-11014567-1172081.ies

VOLA14-30WLED-UNIV-40

303672122>100>80 /wp-content/uploads/2017/03/VOLA14.pdf/wp-content/uploads/2016/11/VOLA14-30WLED-UNIV-40-ies.ies

VOLA14-35WLED-UNIV-40

354082116>100>80 /wp-content/uploads/2017/03/VOLA14.pdf/wp-content/uploads/2016/11/VOLA14-35WLED-UNIV-40-ies-11014567-1172082.ies

VOLA14-42WLED-UNIV-40

424832116>100>80 /wp-content/uploads/2017/03/VOLA14.pdf/wp-content/uploads/2016/11/VOLA14-42WLED-UNIV-40-ies.ies

VOLA14-52WLED-UNIV-40

536542124>100>80/wp-content/uploads/2016/11/glyphicons_ok-1.png/wp-content/uploads/2017/03/VOLA14.pdf/wp-content/uploads/2016/11/VOLA14-52WLED-UNIV-40-ies-11014567-1172083.ies

VOLA14-59WLED-UNIV-40

587083121>100>80 /wp-content/uploads/2017/03/VOLA14.pdf/wp-content/uploads/2016/11/VOLA14-59WLED-UNIV-40-ies.ies

VOLA22-16WLED-UNIV-40-90CRI

171894110>100>80 /wp-content/uploads/2017/10/VOLA-90CRI.pdf/wp-content/uploads/2017/10/VOLA22-16WLED-UNIV-40-90CRI-IES-11710500-11710500.03.ies

VOLA22-18WLED-UNIV-40

192321124>100>80 /wp-content/uploads/2017/10/VOLA22-1.pdf/wp-content/uploads/2017/10/VOLA22-18WLED-UNIV-40-IES-11898784-11898784.03.ies

VOLA22-22WLED-UNIV-40

232810125>100>80 /wp-content/uploads/2017/10/VOLA22-1.pdf/wp-content/uploads/2017/10/VOLA22-22WLED-UNIV-40-IES-11898784-11898784.06.ies

VOLA22-22WLED-UNIV-40-90CRI

222472111>100>90 /wp-content/uploads/2017/10/VOLA-90CRI.pdf/wp-content/uploads/2017/10/VOLA22-22WLED-UNIV-40-90CRI-IES-11710500-11710500.04.ies

VOLA22-26WLED-UNIV-40

273385127>100>80 /wp-content/uploads/2017/10/VOLA22-1.pdf/wp-content/uploads/2017/10/VOLA22-26WLED-UNIV-40-IES-11898784-11898784.10.ies

VOLA22-30WLED-UNIV-40

313854126>100>80 /wp-content/uploads/2017/10/VOLA22-1.pdf/wp-content/uploads/2017/10/VOLA22-30WLED-UNIV-40-IES-11898784-11898784.11.ies

VOLA22-30WLED-UNIV-40-90CRI

303261109>100>90 /wp-content/uploads/2017/10/VOLA-90CRI.pdf/wp-content/uploads/2017/10/VOLA22-30WLED-UNIV-40-90CRI-IES-11710500-11710500.05.ies

VOLA22-35WLED-UNIV-40

364414123>100>80 /wp-content/uploads/2017/10/VOLA22-1.pdf/wp-content/uploads/2017/10/VOLA22-35WLED-UNIV-40-IES-11898784-11898784.14.ies

VOLA22-35WLED-UNIV-40-90CRI

353780108>100>90 /wp-content/uploads/2017/10/VOLA-90CRI.pdf/wp-content/uploads/2017/10/VOLA22-35WLED-UNIV-40-90CRI-IES-11710500-11710500.08.ies

VOLA24-24WLED-UNIV-40

242953128>100>80/wp-content/uploads/2016/11/glyphicons_ok-1.png/wp-content/uploads/2017/03/VOLA24.pdf/wp-content/uploads/2017/10/VOLA24-24WLED-UNIV-40-ies.ies

VOLA24-30WLED-UNIV-40

303774125>100>80/wp-content/uploads/2016/11/glyphicons_ok-1.png/wp-content/uploads/2017/03/VOLA24.pdf/wp-content/uploads/2016/11/VOLA24-30WLED-UNIV-40-ies.ies

VOLA24-30WLED-UNIV-40-90CRI

303416115>100>90 /wp-content/uploads/2017/10/VOLA-90CRI.pdf/wp-content/uploads/2017/10/VOLA24-30WLED-UNIV-40-90CRI-IES-11710500-11710500.12.ies

VOLA24-35WLED-UNIV-40

354271121>100>80 /wp-content/uploads/2017/03/VOLA24.pdf/wp-content/uploads/2016/11/VOLA24-35WLED-UNIV-40-ies.ies

VOLA24-35WLED-UNIV-40-90CRI

353981113>100>90 /wp-content/uploads/2017/10/VOLA-90CRI.pdf/wp-content/uploads/2017/10/VOLA24-35WLED-UNIV-40-90CRI-IES-11710500-11710500.13.ies

VOLA24-42WLED-UNIV-40

424985119>100>80 /wp-content/uploads/2017/03/VOLA24.pdf/wp-content/uploads/2016/11/VOLA24-42WLED-UNIV-40-ies.ies

VOLA24-42WLED-UNIV-40-90CRI

424633110>100>90 /wp-content/uploads/2017/10/VOLA-90CRI.pdf/wp-content/uploads/2017/10/VOLA24-42WLED-UNIV-40-90CRI-IES-11710500-11710500.16.ies

VOLA24-52WLED-UNIV-40

526923130>100>80/wp-content/uploads/2016/11/glyphicons_ok-1.png/wp-content/uploads/2017/03/VOLA24.pdf/wp-content/uploads/2016/11/VOLA24-52WLED-UNIV-40-ies.ies

VOLA24-59WLED-UNIV-40

597532128>100>80/wp-content/uploads/2016/11/glyphicons_ok-1.png/wp-content/uploads/2017/03/VOLA24.pdf/wp-content/uploads/2016/11/VOLA24-59WLED-UNIV-40-Gonio.ies
