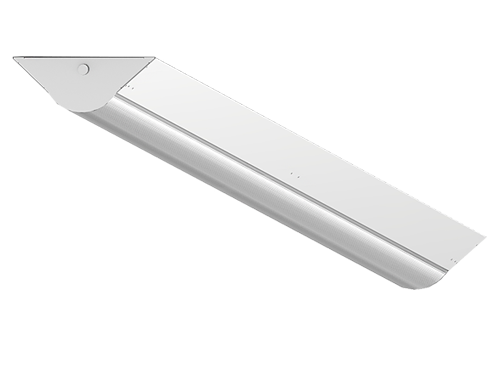

Curved Wide Base Wrap

Certifications

Curved Wide Base Wrap Details

    • Features:

      • Cover existing foot print with 12″ wide base wrap
      • Sleek curved profile frosted acrylic impact resistant lens
      • .040″ aluminum pre-painted white housing
      • Ceiling, wall or suspension mounting options
      • Multiple dimming & sensor options to fully control occupied & unoccupied light levels
      • Suitable for installing in continuous runs
      • 3000K, 3500K, 4000K, and 5000K color options available
      • 0-10V Dimmable Driver (100% – 5%)
      • 120V-277V Universal Voltage
      • Dry & Damp Location Rated
      • 5 Year Warranty
      • ETL Damp Location Rated
      • DesignLights Consortium® Qualified Luminaire

    • Applications:

      • Schools
      • Hallways
      • Offices
      • Hospitals
      • Work Station Task Lighting
      • Multipurpose
Part Number Watts Lumens Lm/W L70 CRI DLC PREMIUM CUT SHEET IES

SQ4-16WLED-UNIV-40-WB

162078127>100>80 /wp-content/uploads/2018/06/SQ-WB-Cutsheet.pdf/wp-content/uploads/2016/11/SQ4-16WLED-UNIV-40-1.ies

SQ4-30WLED-UNIV-40-WB

303694123>100>80 /wp-content/uploads/2018/06/SQ-WB-Cutsheet.pdf/wp-content/uploads/2016/11/SQ4-30WLED-UNIV-40-1.ies

SQ4-44WLED-UNIV-40-WB

445086116>100>80 /wp-content/uploads/2018/06/SQ-WB-Cutsheet.pdf/wp-content/uploads/2016/11/SQ4-44WLED-UNIV-40-1.ies

SQ8-32WLED-UNIV-40-WB

324018126>100>80 /wp-content/uploads/2018/06/SQ-WB-Cutsheet.pdf/wp-content/uploads/2016/11/SQ8-32WLED-UNIV-40-1.ies

SQ8-60WLED-UNIV-40-WB

607329122>100>80 /wp-content/uploads/2018/06/SQ-WB-Cutsheet.pdf/wp-content/uploads/2016/11/SQ8-60WLED-UNIV-40.ies

SQ8-88WLED-UNIV-40-WB

8910236115>100>80 /wp-content/uploads/2018/06/SQ-WB-Cutsheet.pdf/wp-content/uploads/2016/11/SQ8-88WLED-UNIV-40.ies
