Grid Frame High Bay

Certifications

Grid Frame High Bay Details

    • Features:

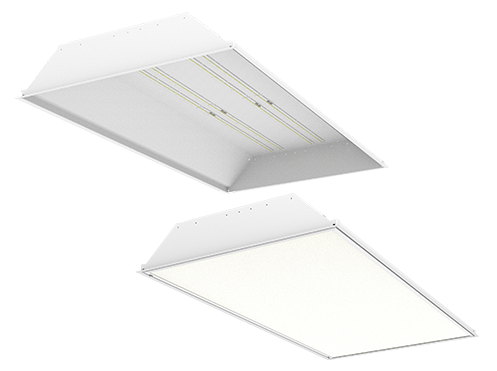

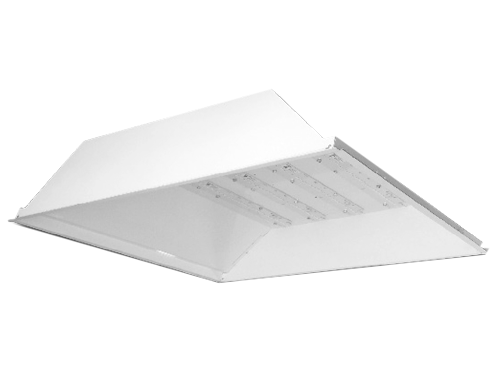

      • 2×2 and 2×4 Recessed Grid High Bay
      • Specification Grade For New Construction or Renovation of any Building
      • .040 Aluminum Prepainted Housing
      • Standard Configuration
        • No Lens
        • No Wire Cage
      • Frosted Lens Option Available
      • Polycarbonate Lens Option Available
      • Flange Kit Option Available
      • Wire Cage Option Available
      • 0-10V Dimmable Driver
      • ETL Damp Location Listed
      • DesignLights Consortium® Premium Qualified Luminaire
    • Applications:

      • Gymnasiums
      • Multipurpose Rooms
      • Car Dealerships
      • Racquetball Courts

    NEMA Type “G” Installation Instructions

    Flange Kit Installation Guide

Part Number Watts Lumens Lm/W L70 CRI DLC PREMIUM CUT SHEET IES

GH22-115WLED-UNIV-50

11317036150>100>80/wp-content/uploads/2016/11/glyphicons_ok-1.png/wp-content/uploads/2018/04/GH22.pdf/wp-content/uploads/2018/04/GH22-115WLED-UNIV-50-ies.ies

GH22-115WLED-UNIV-50-FRL

11315037134>100>80/wp-content/uploads/2016/11/glyphicons_ok-1.png/wp-content/uploads/2018/04/GH22.pdf/wp-content/uploads/2018/04/GH22-115WLED-UNIV-50-FRL-ies.ies

GH22-135WLED-UNIV-50

13620742153>100>80/wp-content/uploads/2016/11/glyphicons_ok-1.png/wp-content/uploads/2018/04/GH22.pdf/wp-content/uploads/2018/04/GH22-135WLED-UNIV-50-ies.ies

GH22-135WLED-UNIV-50-FRL

13618340134>100>80/wp-content/uploads/2016/11/glyphicons_ok-1.png/wp-content/uploads/2018/04/GH22.pdf/wp-content/uploads/2018/04/GH22-135WLED-UNIV-50-FRL-ies.ies

GH22-90WLED-UNIV-50

8813859157>100>80/wp-content/uploads/2016/11/glyphicons_ok-1.png/wp-content/uploads/2018/04/GH22.pdf/wp-content/uploads/2018/04/GH22-90WLED-UNIV-50-ies.ies

GH22-90WLED-UNIV-50-FRL

8912352140>100>80/wp-content/uploads/2016/11/glyphicons_ok-1.png/wp-content/uploads/2018/04/GH22.pdf/wp-content/uploads/2018/04/GH22-90WLED-UNIV-50-FRL-ies.ies

GH24-130WLED-UNIV-50

13220793158>100>80/wp-content/uploads/2016/11/glyphicons_ok-1.png/wp-content/uploads/2018/04/GH24.pdf/wp-content/uploads/2018/04/GH24-130WLED-UNIV-50-ies.ies

GH24-130WLED-UNIV-50-FRL

13218749142>100>80/wp-content/uploads/2016/11/glyphicons_ok-1.png/wp-content/uploads/2018/04/GH24.pdf/wp-content/uploads/2018/04/GH24-130WLED-UNIV-50-FRL-ies.ies

GH24-180WLED-UNIV-50

17626798152>100>80/wp-content/uploads/2016/11/glyphicons_ok-1.png/wp-content/uploads/2018/04/GH24.pdf/wp-content/uploads/2018/04/GH24-180WLED-UNIV-50-ies.ies

GH24-180WLED-UNIV-50-FRL

17624350138>100>80/wp-content/uploads/2016/11/glyphicons_ok-1.png/wp-content/uploads/2018/04/GH24.pdf/wp-content/uploads/2018/04/GH24-180WLED-UNIV-50-FRL-ies.ies

GH24-90WLED-UNIV-50

8813991158>100>80/wp-content/uploads/2016/11/glyphicons_ok-1.png/wp-content/uploads/2018/04/GH24.pdf/wp-content/uploads/2018/04/GH24-90WLED-UNIV-50-ies.ies

GH24-90WLED-UNIV-50-FRL

8912681143>100>80/wp-content/uploads/2016/11/glyphicons_ok-1.png/wp-content/uploads/2018/04/GH24.pdf/wp-content/uploads/2018/04/GH24-90WLED-UNIV-50-FRL-ies.ies
