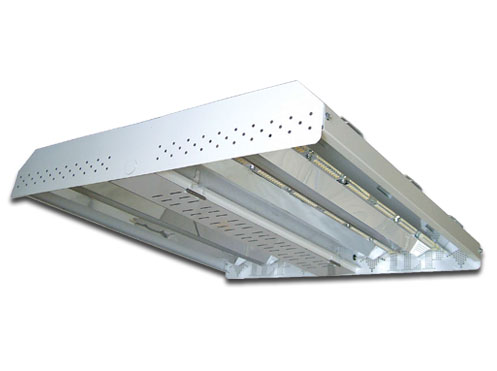

High Bay

Certifications
High Bay Details
-
Features:
- Aluminum Body with Steel Channel for
Added Rigidity - Tool-Less Hinged Bottom Ballast Access Door
- 95% Enhanced Aluminum, Wide Distribution Reflectors (Std), No Reflectors (Recommended)
- Frosted Lens Option Available
- High Gloss Polyester White Paint
- Riveted Construction
- Vented Ballast Channel
- Extensive Mounting Options
- Multiple Dimming and Sensor Options to Fully Control Occupied and Unoccupied Light Levels
- 4000K and 5000K Color Options.
- 5 Year Warranty
- ETL Damp Location Rated
- DesignLights Consortium® Qualified Luminaire
- Aluminum Body with Steel Channel for
-
Applications:
- Warehouses
- Distribtions
- Manufacturing Plants
- Gymnasiums
Part Number | Watts | Lumens | Lm/W | L70 | CRI | DLC PREMIUM | CUT SHEET | IES |
---|---|---|---|---|---|---|---|---|
HB-100WLED-UNIV-5000K-N | 108 | 11233 | 104 | >90 | >80 | /wp-content/uploads/2017/03/HB-100WLED.pdf | /wp-content/uploads/2016/11/HB-100WLED-UNIV-5000K-N.ies | |
HB-100WLED-UNIV-5000K-N-FRK | 107 | 11944 | 111 | >90 | >80 | /wp-content/uploads/2017/03/HB-100WLED-FRL.pdf | /wp-content/uploads/2016/11/HB-100WLED-UNIV-5000K-FRL.ies | |
HB-150WLED-UNIV-5000K-N | 169 | 18252 | 108 | >90 | >80 | /wp-content/uploads/2017/03/HB-150WLED.pdf | /wp-content/uploads/2016/11/HB-150WLED-UNIV.ies | |
HB-150WLED-UNIV-5000K-N-FRL | 169 | 17069 | 101 | >90 | >80 | /wp-content/uploads/2017/03/HB-150WLED-FRL.pdf | /wp-content/uploads/2016/12/HB-150WLED-UNIV-5000K-N-FRL.ies | |
HB-200WLED-UNIV-5000K-N | 218 | 24819 | 114 | >90 | >80 | /wp-content/uploads/2017/03/HB-200WLED.pdf | /wp-content/uploads/2016/11/HB-200WLED-UNIV-5000K-N.ies | |
HB-200WLED-UNIV-5000K-N-FRL | 218 | 22051 | 101 | >90 | >80 | /wp-content/uploads/2017/03/HB-200WLED-FRL.pdf | /wp-content/uploads/2016/11/HB-200WLED-UNIV-FRL.ies | |
HB-285WLED-UNIV-50 | 291 | 37754 | 129 | >100 | >80 | /wp-content/uploads/2017/10/HB-285WLED.pdf | /wp-content/uploads/2017/10/HB-285WLED-UNIV-50-ies.ies | |
HB-285WLED-UNIV-50-FRL | 290 | 34660 | 119 | >100 | >80 | /wp-content/uploads/2017/10/HB-285WLED-FRL.pdf | /wp-content/uploads/2017/10/HB-285WLED-UNIV-50-FRL-ies.ies | |
HB-300WLED-UNIV-5000K-N | 325 | 36725 | 113 | >100 | >80 | /wp-content/uploads/2017/03/HB-300WLED.pdf | /wp-content/uploads/2016/11/HB-300WLED-UNIV-5000K-N.ies | |
HB-300WLED-UNIV-5000K-N-FRL | 325 | 33150 | 102 | >100 | >80 | /wp-content/uploads/2017/03/HB-300WLED-FRL.pdf | /wp-content/uploads/2016/11/HB-300WLED-UNIV-5000K-FRL.ies | |
HB-380WLED-UNIV-50 | 385 | 47924 | 125 | >100 | >80 | /wp-content/uploads/2017/03/HB-380WLED.pdf | /wp-content/uploads/2016/11/HB-380WLED-UNIV-50-ies.ies | |
HB-380WLED-UNIV-50-FRL | 384 | 43430 | 112 | >100 | >80 | /wp-content/uploads/2017/12/HB-380WLED-FRL.pdf | /wp-content/uploads/2017/12/HB-380WLED-UNIV-50-FRL.ies | |
HB-400WLED-UNIV-5000K-N | 439 | 49507 | 113 | >100 | >80 | /wp-content/uploads/2017/03/HB-400WLED.pdf | /wp-content/uploads/2016/11/HB-400WLED-UNIV.ies | |
HB-400WLED-UNIV-5000K-N-FRL | 439 | 47797 | 109 | >100 | >80 | /wp-content/uploads/2017/03/HB-400WLED-FRL.pdf | /wp-content/uploads/2016/11/HB-400WLED-UNIV-FRL.ies |
