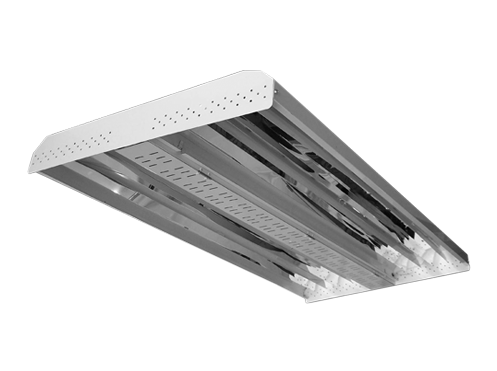

Narrow Distribution High Bay

Certifications

Narrow Distribution High Bay Details

    • Features:

      • 95% Enhanced Aluminum Narrow Distribution Reflectors
      • Aluminum Body with Steel Channel for Added Rigidity
      • Tool-Less Hinged Bottom Ballast Access Door
      • Frosted Acrylic or Polycarbonate Lens Options
      • High Gloss Polyester White Paint
      • Riveted Construction and Vented Ballast Channel
      • V-Clips for Dual Point Chain or Cable Hanging (Std)
      • Multiple Dimming and Sensor Options to Fully Control Occupied and Unoccupied Light Levels
      • 4000K and 5000K Color Options
      • 5 Year Warranty
      • ETL Damp Location Rated
      • DesignLights Consortium® Qualified Luminaire
    • Applications:

      • Warehouses
      • Distribtion Centers
      • Manufacturing Plants
      • Gymnasiums

Part Number Watts Lumens Lm/W L70 CRI DLC PREMIUM CUT SHEET IES

HB-285WLED-UNIV-50-N-FRL

28831710110>100>80 /wp-content/uploads/2017/03/HB-285WLED-FRL.pdf/wp-content/uploads/2016/11/HB-285WLED-UNIV-50-ND-ies.ies

HB-380WLED-UNIV-50-N

38445300118>100>80 /wp-content/uploads/2017/03/HB-380WLED.pdf/wp-content/uploads/2016/11/HB-380WLED-UNIV-50-ND-ies.ies

PHB-160WLED-UNIV-50-ND

16223910148>100K>80/wp-content/uploads/2016/11/glyphicons_ok-1.png/wp-content/uploads/2017/06/PHB-160WLED-UNIV-50-ND.pdf/wp-content/uploads/2017/06/PHB-160WLED-UNIV-50-ND-ies.ies
