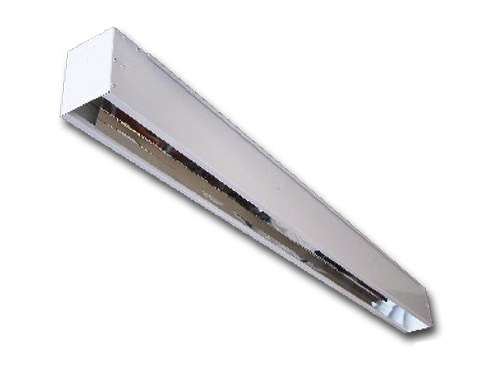

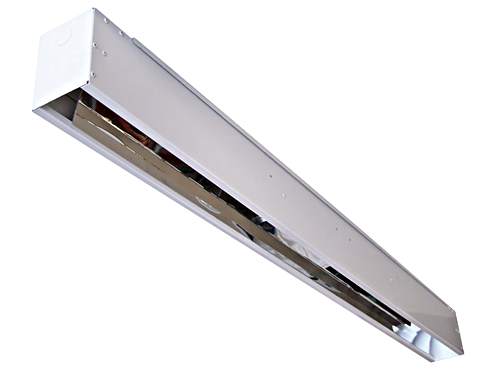

Rack Aisle High Bay

Certifications

Rack Aisle High Bay Details

    • Features:

      • 95% Enhanced Aluminum Narrow Distribution Reflector
      • Aluminum Body with Riveted Construction and High Gloss Polyester White Paint
      • Multiple Dimming and Sensor Options to Fully Control Occupied and Unoccupied Light Levels
      • 4000K and 5000K Color Options
      • Single Fixure or Cont. Row
      • Universal 0-10V Dimmable Driver (Std)
      • 5 Year Warranty
      • ETL Damp Location Rated
    • Applications:

      • Aisle Ways
      • Warehouses
      • Distribution Centers
      • Manufacturing Plants

Part Number Watts Lumens Lm/W L70 CRI DLC PREMIUM CUT SHEET IES

RAH-40WLED-UNIV-50

416135150>100>80/wp-content/uploads/2016/11/glyphicons_ok-1.png/wp-content/uploads/2017/08/RAH-40WLED.pdf/wp-content/uploads/2017/08/RAH-40WLED-UNIV-50-ies.ies

RAH-60WLED-UNIV-50

596114103>100>80 /wp-content/uploads/2017/03/RAH_60W.pdf/wp-content/uploads/2016/11/RAH-60WLED-UNIV-5000K-1.ies

RAH8-100WLED-UNIV-50

11312080107>100>80 /wp-content/uploads/2017/03/RAH8_100W.pdf/wp-content/uploads/2016/11/RAH8-100WLED-UNIV-5000K.ies

RAH8-60WLED-UNIV-50

596114103>100>80 /wp-content/uploads/2017/03/RAH8_60W.pdf/wp-content/uploads/2016/11/RAH8-60WLED-UNIV-5000K.ies

RAH8-80WLED-UNIV-50

8012595158>100>80/wp-content/uploads/2016/11/glyphicons_ok-1.png/wp-content/uploads/2017/08/RAH8-80WLED.pdf/wp-content/uploads/2017/08/RAH8-80WLED-UNIV-50-ies.ies
