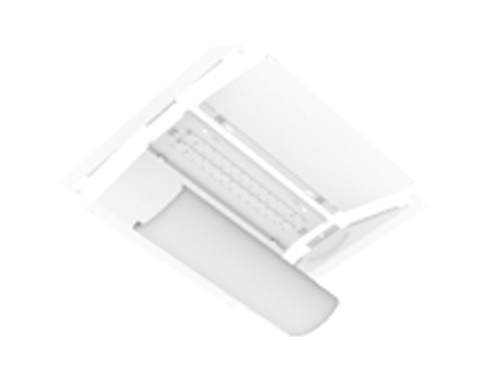

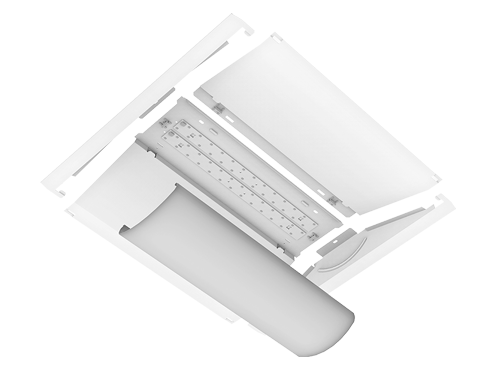

BIF - Built In Frame

Certifications

BIF - Built In Frame Details

    • Features:

      • Upgrade Any 2’x2′ or 2’x4′ Fluorescent Troffer To LED With Modern Architectural Styling
      • 24 LEDs Per Module Spaced 3/4 Inch Apart Results In Low Pixilation
      • No Tools Required For Easy Installation Into The Existing Fixture Housing
      • Available in 4000K
      • 0-10V Dimming Driver (Std.)
      • 5 Year Warranty
      • ETL Damp Location Rated
      • DesignLights Consortium® Qualified Luminaire
    • Applications:

      • 2×2’s
      • 2×4’s
      • Parabolic Louvers
      • Prismatic Lenses

    Click Here To View BIF Installation Video

    Built-In-Frame LED Retrofit Kit Installation Instructions

Part Number Watts Lumens Lm/W L70 CRI DLC PREMIUM CUT SHEET IES

BIF22-25WLED-UNIV-40

233000130>100>80 /wp-content/uploads/2017/03/BIF_CUTSHEET.pdf/wp-content/uploads/2016/11/BIF22-25WLED-UNIV-40-10720988-979310-1.ies

BIF22-30WLED-UNIV-40

303600120>100>80 /wp-content/uploads/2017/03/BIF_CUTSHEET.pdf/wp-content/uploads/2016/11/BIF22-30WLED-UNIV-40-10720988-979311-1.ies

BIF24-30WLED-UNIV-40

303600120>100>80 /wp-content/uploads/2017/03/BIF_CUTSHEET.pdf/wp-content/uploads/2016/11/BIF24-30WLED-UNIV-40-10720988-979312-1.ies

BIF24-37WLED-UNIV-40

364752132>100>80 /wp-content/uploads/2017/03/BIF_CUTSHEET.pdf/wp-content/uploads/2016/11/BIF24-37WLED-UNIV-40-10720988-979313-1.ies

BIF24-43WLED-UNIV-40

435160120>100>80 /wp-content/uploads/2017/03/BIF_CUTSHEET.pdf/wp-content/uploads/2016/11/BIF24-43WLED-UNIV-40-10720988-979314-1.ies
