BOB – Bolt On Board

Certifications

BOB – Bolt On Board Details

    • Features:

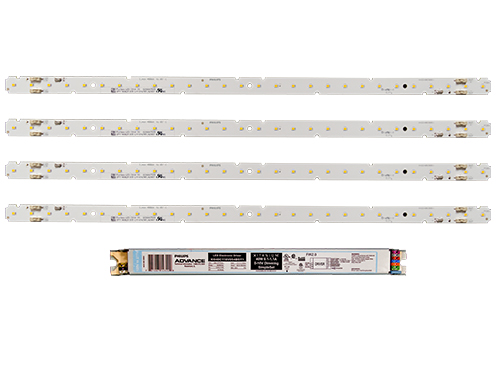

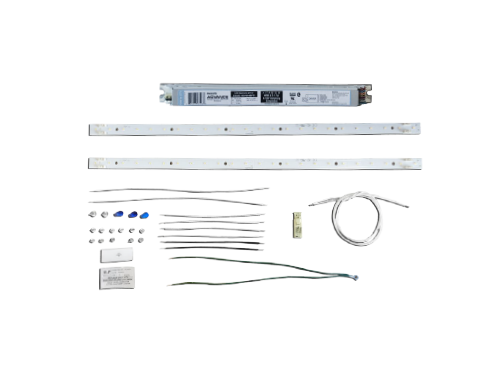

      • LED Board And Driver Kits For Recessed Lighting Applications
      • ETL Listed As An LED Retrofit Kit (UL1598C) For 2’x2′, 2’x4′, & 1’x4′ Troffers
      • 3000K – 5000K Color Options
      • Diffuse Light With Optional Frosted Sheet (Contact Factory)
      • Multiple Light Outputs
      • Dimmable Philips Drivers (0-10V)
      • Philips LED Boards
      • 5 Year Warranty On Components
      • DesignLights Consortium® Qualified
    • Applications:

      • 1×4, 2×2, and 2×4
      • Parabolics
      • Prismatic Lenses
      • Air-Hnadling Units

        Click Here To View BOB Installation Video

Part Number Watts Lumens Lm/W L70 CRI DLC PREMIUM CUT SHEET IES

BOB-23WLED-2BD-UNIV-40 (1×4)

232411106>100>80 /wp-content/uploads/2017/06/BOB-1X4.pdf/wp-content/uploads/2017/04/BOB-23WLED-2BD-UNIV-40-1x4-IES-11618430-11618430.01.ies

BOB-23WLED-2BD-UNIV-40 (2×2)

232316101>100>80 /wp-content/uploads/2017/06/BOB-2X2.pdf/wp-content/uploads/2017/04/BOB-23WLED-2BD-UNIV-40-2x2-IES-11618430-11618430.03.ies

BOB-31WLED-4BD-UNIV-40 (1×4)

313268106>100>80 /wp-content/uploads/2017/06/BOB-1X4.pdf/wp-content/uploads/2017/04/BOB-31WLED-4BD-UNIV-40-1x4-IES-11618430-11618430.02.ies

BOB-31WLED-4BD-UNIV-40 (2×2)

313367109>100>80 /wp-content/uploads/2017/06/BOB-2X2.pdf/wp-content/uploads/2017/04/BOB-31WLED-4BD-UNIV-40-2x2-IES-11618430-11618430.04.ies

BOB-31WLED-4BD-UNIV-40 (2×4)

313781122>100>80 /wp-content/uploads/2017/06/BOB-2X4.pdf/wp-content/uploads/2017/04/BOB-31WLED-4BD-UNIV-40-2x4-IES-11618430-11618430.05.ies

BOB-36WLED-4BD-UNIV-40 (2×4)

364313120>100>80 /wp-content/uploads/2017/06/BOB-2X4.pdf/wp-content/uploads/2017/04/BOB-36WLED-4BD-UNIV-40-2x4-IES-11618430-11618430.06.ies

BOB-45WLED-4BD-UNIV-40 (2×4)

455297117>100>80 /wp-content/uploads/2017/06/BOB-2X4.pdf/wp-content/uploads/2017/04/BOB-45WLED-4BD-UNIV-40-2x4-IES-11618430-11618430.07.ies
