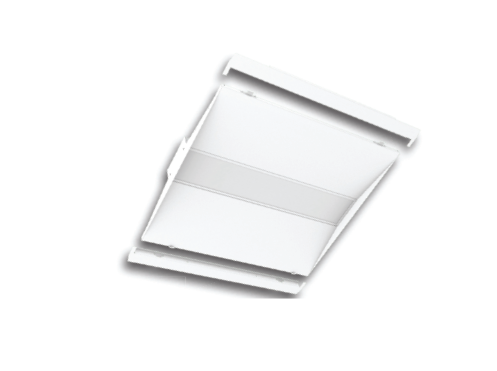

Flat Lens Troffer Retrofit

Certifications

Flat Lens Troffer Retrofit Details

    • Features:

      • Architectural Design
      • One-Piece Unit With Universal Mounting Brackets For Rapid Installation
      • Flat Frosted Acrylic Lens
      • .040 Aluminum Pre-Painted Housing
      • Post Paint Available
      • 3000K, 3500K, & 4000K Color Options
      • EasySense Control Available
      • 0-10V Dimmable Driver
      • 5 Year Warranty
      • ETL Damp Location Rated
      • DesignLights Consortium® Premium Qualified
    • Applications:

      • 1×4, 2×2, and 2×4
      • Parabolics
      • Prismatic Lens
      • Air-Handling Units (Custom Configuration, Contact Factory)



    Flat Lens LED Retrofit Kit Installation Instructions

Part Number Watts Lumens Lm/W L70 CRI DLC PREMIUM CUT SHEET IES

FLTR14-19WLED-UNIV-40

192319124>100>80 /wp-content/uploads/2017/10/FLTR14.pdf/wp-content/uploads/2017/10/FLTR14-19WLED-UNIV-40-XXXXX-ies.ies

FLTR14-30WLED-UNIV-40

303561119>100>80 /wp-content/uploads/2017/10/FLTR14.pdf/wp-content/uploads/2017/10/FLTR14-30WLED-UNIV-40-XX-ies.ies

FLTR14-45WLED-UNIV-40

455018112>100>80 /wp-content/uploads/2017/10/FLTR14.pdf/wp-content/uploads/2017/10/FLTR14-45WLED-UNIV-40-XXXXX-ies.ies

FLTR22-19WLED-UNIV-40

192217118>100>80 /wp-content/uploads/2017/10/FLTR22.pdf/wp-content/uploads/2017/10/FLTR22-19WLED-UNIV-40-XXXXX-ies.ies

FLTR22-30WLED-UNIV-40

303385113>100>80 /wp-content/uploads/2017/10/FLTR22.pdf/wp-content/uploads/2017/10/FLTR22-30WLED-UNIV-40-XX-ies.ies

FLTR22-45WLED-UNIV-40

444735107>100>80 /wp-content/uploads/2017/10/FLTR22.pdf/wp-content/uploads/2017/10/FLTR22-45WLED-UNIV-40-XXXXX-ies.ies

FLTR24-26WLED-UNIV-40

263244126>100>80 /wp-content/uploads/2017/10/FLTR24.pdf/wp-content/uploads/2017/10/FLTR24-26WLED-UNIV-40-XXXXX-ies.ies

FLTR24-35WLED-UNIV-40

354217115>100>80 /wp-content/uploads/2017/10/FLTR24.pdf/wp-content/uploads/2017/10/FLTR24-35WLED-UNIV-40-XXXX-ies.ies

FLTR24-45WLED-UNIV-40

455174115>100>80 /wp-content/uploads/2017/10/FLTR24.pdf/wp-content/uploads/2017/10/FLTR24-45WLED-UNIV-40-XXXXX-ies.ies
