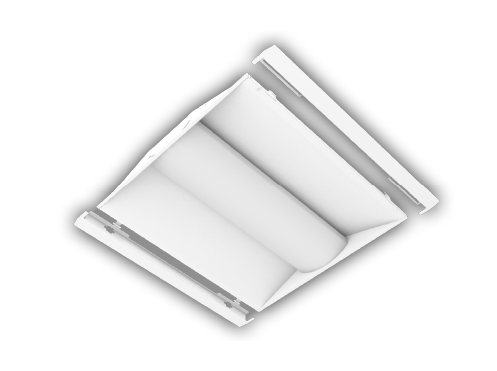

LANCE - Latch And Close
Certifications
LANCE - Latch And Close Details
-
Features:
- LED Retrofit Kit For Recessed Lighting Application
- One-Piece Unit With Universal Mounting Brackets For Rapid Installation
- ETL Listed (UL1598C)
- 3000K, 3500K, 4000K, & 5000K Color Options
- Multiple Lumen Outputs Available
- 0-10V Dimmable Driver
- 5 Year Warranty
- DesignLights Consortium® Qualified
-
Applications:
- 1×4, 2×2, and 2×4
- Parabolics
- Prismatic Lens
- Air-Handling Units (Custom Configuration, Contact Factory)
| Part Number | Watts | Lumens | Lm/W | L70 | CRI | DLC PREMIUM | CUT SHEET | IES |
|---|---|---|---|---|---|---|---|---|
LANCE14-13WLED-UNIV-40 | 13 | 1579 | 116 | >100 | >80 | /wp-content/uploads/2017/10/LANCE14.pdf | ||
LANCE14-22WLED-UNIV-40 | 22 | 2768 | 124 | >100 | >80 | /wp-content/uploads/2016/11/glyphicons_ok-1.png | /wp-content/uploads/2017/10/LANCE14.pdf | /wp-content/uploads/2017/10/LANCE14-22WLED-UNIV-40-IES-11931650-11931650.03.ies |
LANCE14-30WLED-UNIV-40 | 30 | 3704 | 122 | >100 | >80 | /wp-content/uploads/2016/11/glyphicons_ok-1.png | /wp-content/uploads/2017/10/LANCE14.pdf | /wp-content/uploads/2017/10/LANCE14-30WLED-UNIV-40-IES-11931650-11931650.04.ies |
LANCE14-35WLED-UNIV-40 | 36 | 4261 | 120 | >100 | >80 | /wp-content/uploads/2017/10/LANCE14.pdf | /wp-content/uploads/2017/10/LANCE14-35WLED-UNIV-40-IES-11931650-11931650.05.ies | |
LANCE14-42WLED-UNIV-40 | 42 | 4903 | 117 | >100 | >80 | /wp-content/uploads/2017/10/LANCE14.pdf | /wp-content/uploads/2017/10/LANCE14-42WLED-UNIV-40-IES-11931650-11931650.08.ies | |
LANCE14-52WLED-UNIV-40 | 52 | 6215 | 120 | >100 | >80 | /wp-content/uploads/2017/10/LANCE14.pdf | /wp-content/uploads/2016/11/LANCE14-52WLED-UNIV-40-ies.ies | |
LANCE14-59WLED-UNIV-40 | 59 | 6904 | 117 | >100 | >80 | /wp-content/uploads/2017/10/LANCE14.pdf | /wp-content/uploads/2016/11/LANCE14-59WLED-UNIV-40-ies.ies | |
LANCE22-16WLED-UNIV-40 | 16 | 2025 | 124 | >100 | >80 | /wp-content/uploads/2017/10/LANCE22.pdf | /wp-content/uploads/2017/10/LANCE22-16WLED-UNIV-40-IES-11906564-11906564.03.ies | |
LANCE22-16WLED-UNIV-40-90CRI | 17 | 1924 | 112 | >100 | >90 | /wp-content/uploads/2017/07/LANCE-22-90CRI.pdf | /wp-content/uploads/2017/07/LANCE22-16WLED-UNIV-35-90CRI-IES-11697027-11697027.03.ies | |
LANCE22-22WLED-UNIV-40 | 22 | 2839 | 127 | >100 | >80 | /wp-content/uploads/2017/10/LANCE22.pdf | /wp-content/uploads/2017/10/LANCE22-22WLED-UNIV-40-IES-11906564-11906564.06.ies | |
LANCE22-22WLED-UNIV-40-90CRI | 22 | 2501 | 112 | >100 | >90 | /wp-content/uploads/2017/07/LANCE-22-90CRI.pdf | /wp-content/uploads/2017/07/LANCE22-22WLED-UNIV-40-90CRI-IES-11697027-11697027.04.ies | |
LANCE22-26WLED-UNIV-40 | 26 | 3326 | 128 | >100 | >80 | /wp-content/uploads/2017/10/LANCE22.pdf | /wp-content/uploads/2017/10/LANCE22-26WLED-UNIV-40-IES-11906564-11906564.10.ies | |
LANCE22-30WLED-UNIV-40 | 31 | 3843 | 126 | >100 | >80 | /wp-content/uploads/2017/10/LANCE22.pdf | /wp-content/uploads/2017/10/LANCE22-30WLED-UNIV-40-IES-11906564-11906564.11.ies | |
LANCE22-30WLED-UNIV-40-90CRI | 30 | 3302 | 111 | >100 | >90 | /wp-content/uploads/2017/07/LANCE-22-90CRI.pdf | /wp-content/uploads/2017/07/LANCE22-30WLED-UNIV-40-90CRI-IES-11697027-11697027.05.ies | |
LANCE22-35WLED-UNIV-40 | 35 | 4466 | 126 | >100 | >80 | /wp-content/uploads/2017/10/LANCE22.pdf | /wp-content/uploads/2017/10/LANCE22-35WLED-UNIV-40-IES-11906564-11906564.14.ies | |
LANCE22-35WLED-UNIV-40-90CRI | 35 | 3769 | 109 | >100 | >90 | /wp-content/uploads/2017/07/LANCE-22-90CRI.pdf | /wp-content/uploads/2017/07/LANCE22-35WLED-UNIV-40-90CRI-IES-11697027-11697027.09.ies | |
LANCE22-52WLED-UNIV-40 | 52 | 6128 | 117 | >100 | >80 | /wp-content/uploads/2017/10/LANCE22.pdf | /wp-content/uploads/2016/11/LANCE22-52WLED-UNIV-40-ies.ies | |
LANCE24-22WLED-UNIV-40 | 22 | 2948 | 134 | >100 | >80 | /wp-content/uploads/2016/11/glyphicons_ok-1.png | /wp-content/uploads/2017/10/LANCE24.pdf | /wp-content/uploads/2017/10/LANCE24-22WLED-UNIV-40-IES-11888706-11888706.03.ies |
LANCE24-30WLED-UNIV-40 | 30 | 3923 | 129 | >100 | >80 | /wp-content/uploads/2016/11/glyphicons_ok-1.png | /wp-content/uploads/2017/10/LANCE24.pdf | /wp-content/uploads/2017/10/LANCE24-30WLED-UNIV-40-IES-11888706-11888706.04.ies |
LANCE24-30WLED-UNIV-40-90CRI | 29 | 3281 | 111 | >100 | >90 | /wp-content/uploads/2017/07/LANCE-24-90CRI.pdf | /wp-content/uploads/2017/07/LANCE24-30WLED-UNIV-40-90CRI-IES-11662226-11662226.03.ies | |
LANCE24-35WLED-UNIV-40 | 34 | 4400 | 128 | >100 | >80 | /wp-content/uploads/2016/11/glyphicons_ok-1.png | /wp-content/uploads/2017/10/LANCE24.pdf | /wp-content/uploads/2017/10/LANCE24-35WLED-UNIV-40-IES-11888706-11888706.05.ies |
LANCE24-35WLED-UNIV-40-90CRI | 35 | 3824 | 110 | >100 | >90 | /wp-content/uploads/2017/07/LANCE-24-90CRI.pdf | /wp-content/uploads/2017/07/LANCE24-35WLED-UNIV-40-90CRI-IES-11662226-11662226.04.ies | |
LANCE24-42WLED-UNIV-40 | 42 | 5254 | 124 | >100 | >80 | /wp-content/uploads/2017/10/LANCE24.pdf | /wp-content/uploads/2017/10/LANCE24-42WLED-UNIV-40-IES-11888706-11888706.09.ies | |
LANCE24-42WLED-UNIV-40-90CRI | 42 | 4539 | 109 | >100 | >90 | /wp-content/uploads/2017/07/LANCE-24-90CRI.pdf | /wp-content/uploads/2017/07/LANCE24-42WLED-UNIV-40-90CRI-IES-11662226-11662226.08.ies | |
LANCE24-47WLED-UNIV-40 | 47 | 6156 | 130 | >100 | >80 | /wp-content/uploads/2017/10/LANCE24.pdf | /wp-content/uploads/2018/05/LANCE24-47WLED-UNIV-40-IES.ies | |
LANCE24-55WLED-UNIV-40 | 55 | 7053 | 128 | >100 | >80 | /wp-content/uploads/2017/10/LANCE24.pdf | /wp-content/uploads/2018/05/LANCE24-55WLED-UNIV-40-IES-11992836-11992836.06A.ies |
