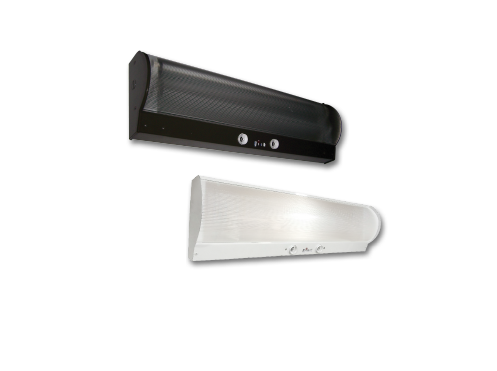

Cavern & Cavern Lite Stairwell

Certifications

Cavern & Cavern Lite Stairwell Details

    • Features:

      • 2FT and 4FT LED Stairwell Fixture Options Available
      • Ultrasonic Sensor Provides For Maximum Sensing Range
      • Fully Control Light Levels For Both Occupied and Unoccupied Areas with High/Low User Selectable Bi-Level Dimming (USBD/HL) Option to Help Maintian Life Safety Codes
      • 0-10V Dimmable (100% – 5%)
      • Impact Resistant Internal Linear Ribbed 25% DR Acrylic Radial Designed Lens
      • 5 Year Warranty
      • ETL Damp Location Rated
      • DesignLights Consortium® Premium Qualified Luminaire
    • Cavern Housing:

      • .060” Aluminum Body
      • .200” 6061 Machined Aluminum End Plates
      • .500” Threaded End Plug
      • Baked on Enamel Powder Coat Finish
    • Cavern Lite Housing:

      • .040 Aluminum Housing
      • Baked on Pre-Paint Enamel

Part Number Watts Lumens Lm/W L70 CRI DLC PREMIUM CUT SHEET IES

CV2-20WLED-UNIV-5000K-USBD

202303113>100>80/wp-content/uploads/2016/11/glyphicons_ok-1.png/wp-content/uploads/2017/03/CV2-20WLED-1.pdf/wp-content/uploads/2016/11/CVL2-20WLED-UNIV-50-USBD-10792301-1064394.ies

CV2-30WLED-UNIV-5000K-USBD

303349112>100>80/wp-content/uploads/2016/11/glyphicons_ok-1.png/wp-content/uploads/2017/03/CV2-30WLED-1.pdf/wp-content/uploads/2017/03/CVL2-30WLED-UNIV-50-USBD-10792301-1064398.ies

CV4-30WLED-UNIV-5000K-USBD

303696125>100>80/wp-content/uploads/2016/11/glyphicons_ok-1.png/wp-content/uploads/2017/03/CV4-30WLED.pdf/wp-content/uploads/2017/01/CVL4-30WLED-UNIV-50-USBD-10792301-1064402.ies

CV4-40WLED-UNIV-5000K-USBD

404767119>100>80/wp-content/uploads/2016/11/glyphicons_ok-1.png/wp-content/uploads/2017/03/CV4-40WLED.pdf/wp-content/uploads/2016/11//CVL4-40WLED-UNIV-50-USBD10792301-1064406.ies
