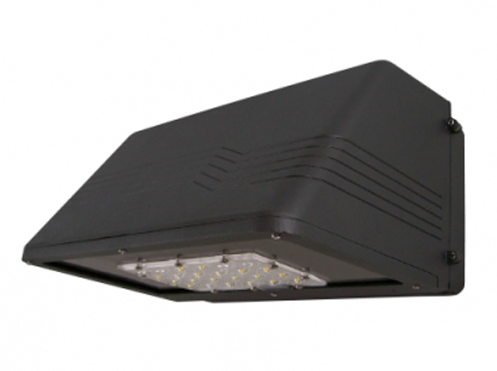

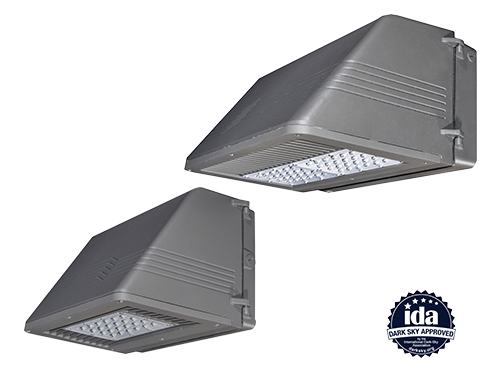

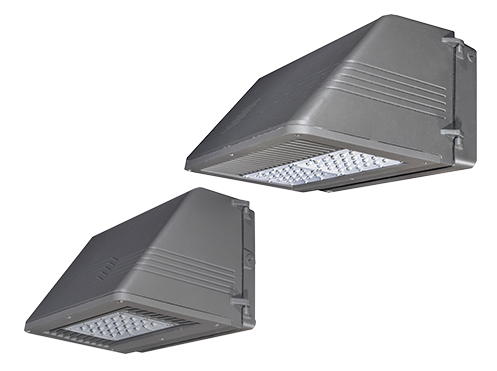

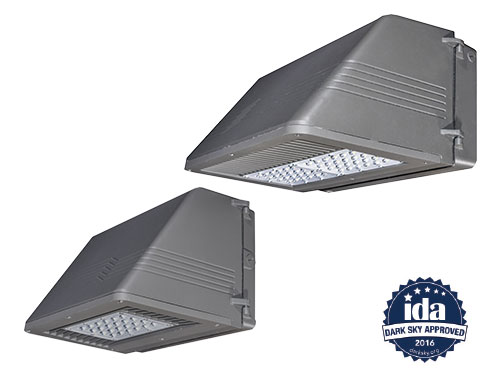

Full Cutoff Wall Pack
Certifications
Full Cutoff Wall Pack Details
-
Features:
- Die Cast Aluminum Housing
- Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating
- Hinged Full Cutoff Front Frame
- ½´´ Coin Plugs with O-rings for Conduit or Optional Photocell
- Multiple Optics Available: Types II, III, & IV
- 3000K, 4000K & 5000K Color Options
- Custom Colors Available Upon Request
- IDA Dark Sky Approved
- ETL Wet Location Rated
- 5 Year Warranty
-
Applications:
- Exterior Wall Lighting
- Building Entrance Ways
- Loading Dock Areas
- Parking Lots
*Must select 3000k to qualify
Wall Pack Installation Instructions – 28W, 44W, 75W and 105W
Wall Pack Installation Instructions – 28W and 44W
| Part Number | Watts | Lumens | Lm/W | L70 | CRI | DLC PREMIUM | CUT SHEET | IES |
|---|---|---|---|---|---|---|---|---|
WPCM-105WLED-UNIV-40-T2 | 105 | 12246 | 116 | >100 | >70 | /wp-content/uploads/2017/08/WPCM-105WLED.pdf | /wp-content/uploads/2017/08/WPCM-105WLED-UNIV-40-T2-IES.ies | |
WPCM-105WLED-UNIV-40-T3 | 105 | 11721 | 111 | >100 | >70 | /wp-content/uploads/2017/08/WPCM-105WLED.pdf | /wp-content/uploads/2017/08/WPCM-105WLED-UNIV-40-T3-IES.ies | |
WPCM-105WLED-UNIV-40-T4 | 105 | 11404 | 108 | >100 | >70 | /wp-content/uploads/2017/08/WPCM-105WLED.pdf | /wp-content/uploads/2017/08/WPCM-105WLED-UNIV-40-T4-IES.ies | |
WPCM-28WLED-UNIV-40-T2 | 28 | 3361 | 120 | >100 | >70 | /wp-content/uploads/2017/08/WPCM-28WLED.pdf | /wp-content/uploads/2017/11/WPCM-28WLED-UNIV-40-T2-IES.ies | |
WPCM-28WLED-UNIV-40-T3 | 28 | 3278 | 117 | >100 | >70 | /wp-content/uploads/2017/08/WPCM-28WLED.pdf | /wp-content/uploads/2017/11/WPCM-28WLED-UNIV-40-T3-IES.ies | |
WPCM-28WLED-UNIV-40-T4 | 27 | 3235 | 122 | >100 | >70 | /wp-content/uploads/2017/08/WPCM-28WLED.pdf | /wp-content/uploads/2017/11/WPCM-28WLED-UNIV-40-T4-IES.ies | |
WPCM-44WLED-UNIV-40-T2 | 42 | 4849 | 115 | >100 | >70 | /wp-content/uploads/2017/08/WPCM-44WLED.pdf | /wp-content/uploads/2017/11/WPCM-44WLED-UNIV-40-T2-IES.ies | |
WPCM-44WLED-UNIV-40-T3 | 42 | 4786 | 113 | >100 | >70 | /wp-content/uploads/2017/08/WPCM-44WLED.pdf | /wp-content/uploads/2017/11/WPCM-44WLED-UNIV-40-T3-IES.ies | |
WPCM-44WLED-UNIV-40-T4 | 38 | 4532 | 120 | >100 | >70 | /wp-content/uploads/2017/08/WPCM-44WLED.pdf | /wp-content/uploads/2017/11/WPCM-44WLED-UNIV-40-T4-IES.ies | |
WPCM-75WLED-UNIV-40-T2 | 74 | 8767 | 119 | >100 | >70 | /wp-content/uploads/2017/08/WPCM-75WLED.pdf | /wp-content/uploads/2017/08/WPCM-75WLED-UNIV-40-T2-IES.ies | |
WPCM-75WLED-UNIV-40-T3 | 74 | 8606 | 117 | >100 | >70 | /wp-content/uploads/2017/08/WPCM-75WLED.pdf | /wp-content/uploads/2017/08/WPCM-75WLED-UNIV-40-T3-IES.ies | |
WPCM-75WLED-UNIV-40-T4 | 74 | 8344 | 113 | >100 | >70 | /wp-content/uploads/2017/08/WPCM-75WLED.pdf | /wp-content/uploads/2017/08/WPCM-75WLED-UNIV-40-T4-IES.ies | |
WPCS-28WLED-UNIV-40-T2 | 28 | 3361 | 120 | >100 | >70 | /wp-content/uploads/2016/11/glyphicons_ok-1.png | /wp-content/uploads/2017/08/WPCS-28WLED.pdf | /wp-content/uploads/2017/08/WPCS-28WLED-UNIV-40-T2-IES.ies |
WPCS-28WLED-UNIV-40-T3 | 28 | 3278 | 117 | >100 | >70 | /wp-content/uploads/2016/11/glyphicons_ok-1.png | /wp-content/uploads/2017/08/WPCS-28WLED.pdf | /wp-content/uploads/2017/08/WPCS-28WLED-UNIV-40-T3-IES.ies |
WPCS-28WLED-UNIV-40-T4 | 29 | 3277 | 115 | >100 | >70 | /wp-content/uploads/2016/11/glyphicons_ok-1.png | /wp-content/uploads/2017/08/WPCS-28WLED.pdf | /wp-content/uploads/2017/08/WPCS-28WLED-UNIV-40-T4-IES.ies |
WPCS-44WLED-UNIV-40-T2 | 42 | 4849 | 115 | >100 | >70 | /wp-content/uploads/2016/11/glyphicons_ok-1.png | /wp-content/uploads/2017/08/WPCS-44WLED.pdf | /wp-content/uploads/2017/08/WPCS-44WLED-UNIV-40-T2-IES.ies |
WPCS-44WLED-UNIV-40-T3 | 42 | 4786 | 113 | >100 | >70 | /wp-content/uploads/2016/11/glyphicons_ok-1.png | /wp-content/uploads/2017/08/WPCS-44WLED.pdf | /wp-content/uploads/2017/08/WPCS-44WLED-UNIV-40-T3-IES.ies |
WPCS-44WLED-UNIV-40-T4 | 42 | 4618 | 109 | >100 | >70 | /wp-content/uploads/2016/11/glyphicons_ok-1.png | /wp-content/uploads/2017/08/WPCS-44WLED.pdf | /wp-content/uploads/2017/08/WPCS-44WLED-UNIV-40-T4-IES.ies |
