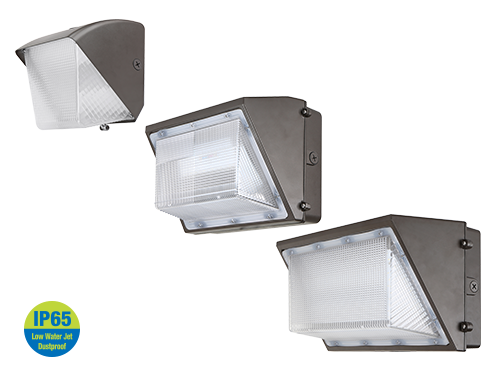

Open Face Wall Pack

Certifications

Open Face Wall Pack Details

    • Features:

      • Bronze Sealed Die-Casting for Outdoor Applications
      • Silicon Lens Gasket and Rubber Housing Gasket Provide Secure Watertight Seal
      • Impact Resistant Frosted Low-Glare Prismatic Polycarbonate Lens with UV Stabilizers
      • ½´´ Coin Plugs with O-rings for Conduit or Optional Photocell
      • Occupancy & Bi-level Dim Control Options Available (excludes 30W)
      • Built-In Base Bubble Level for Easy Installation
      • IP65 Wet Location Rated
      • Dual Driver (135W only)
      • 0-10V Dimmable Driver (100%-10%) (excludes 30W)
      • Universal Voltage 120 – 277V
      • Lumileds LEDs
      • Non-Cutoff Type IV
      • 5 Year Warranty
      • DesignLights Consortium® Qualified Luminaire
    • Applications:

      • Schools
      • Shopping Centers
      • Warehouses
      • General Area Lighting

    Large Open Face Wall Pack Installation Instructions

    Medium Open Face Wall Pack Installation Instructions

    Small Open Face Wall Pack Installation Instructions

Part Number Watts Lumens Lm/W L70 CRI DLC PREMIUM CUT SHEET IES

WPLO-135WLED-UNIV-40

13515340114>75>70 /wp-content/uploads/2017/12/WPLO-135WLED.pdf/wp-content/uploads/2017/12/WPLO-135WLED-UNIV-40.ies

WPLO-135WLED-UNIV-50

13515550115>75>70 /wp-content/uploads/2017/12/WPLO-135WLED.pdf/wp-content/uploads/2017/12/WPLO-135WLED-UNIV-50.ies

WPLO-90WLED-UNIV-40

9010414116>75>70 /wp-content/uploads/2017/12/WPLO-90WLED.pdf/wp-content/uploads/2017/12/WPLO-90WLED-UNIV-40.ies

WPLO-90WLED-UNIV-50

909950111>75>70 /wp-content/uploads/2017/12/WPLO-90WLED.pdf/wp-content/uploads/2017/12/WPLO-90WLED-UNIV-50.ies

WPMO-45WLED-UNIV-40

455049113>75>70 /wp-content/uploads/2017/12/WPMO-45WLED.pdf/wp-content/uploads/2017/12/WPMO-45WLED-UNIV-40.ies

WPMO-45WLED-UNIV-50

454950110>75>70 /wp-content/uploads/2017/12/WPMO-45WLED.pdf/wp-content/uploads/2017/12/WPMO-45WLED-UNIV-50.ies

WPMO-70WLED-UNIV-40

707770112>75>70 /wp-content/uploads/2017/12/WPMO-70WLED.pdf/wp-content/uploads/2017/12/WPMO-70WLED-UNIV-40.ies

WPMO-70WLED-UNIV-50

707900112>75>70 /wp-content/uploads/2017/12/WPMO-70WLED.pdf/wp-content/uploads/2017/12/WPMO-70WLED-UNIV-50.ies

WPSO-30WLED-UNIV-40

314097130>75>70/wp-content/uploads/2016/11/glyphicons_ok-1.png/wp-content/uploads/2017/12/WPSO-30WLED.pdf/wp-content/uploads/2017/12/WPSO-30WLED-UNIV-40.ies

WPSO-30WLED-UNIV-50

314203134>75>70/wp-content/uploads/2016/11/glyphicons_ok-1.png/wp-content/uploads/2017/12/WPSO-30WLED.pdf/wp-content/uploads/2017/12/WPSO-30WLED-UNIV-50.ies
