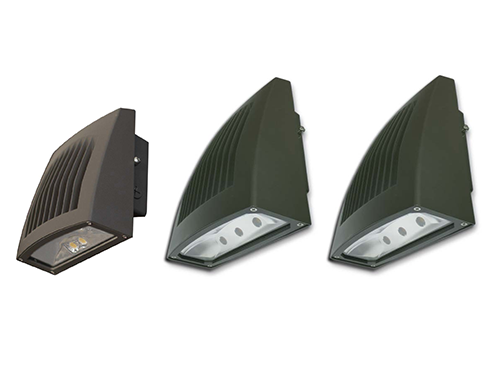

Slim Profile Wall Packs

Certifications

Slim Profile Wall Packs Details

    • Features:

      • Die Cast Aluminum Housing with Hinged Front Frame
      • Bronze Textured Architectural Powder Coat Finish
      • ½´´ Coin Plugs with O-rings for Conduit or Optional Photocell
      • Tempered Glass Lens
      • 120° Beam Angle
      • Cast-in Template for Wall or Junction Box Mounting (Std)
      • 4000K (Std)
      • ETL Wet Location Rated
      • 5 Year Warranty
      • DesignLights Consortium® Qualified Luminaire (20W & 30W Only)
    • Applications:

      • Parking Lots
      • Buildings
      • General Area Lighting

    WPLP Installation Instructions

    WPSP Installation Instructions

Part Number Watts Lumens Lm/W L70 CRI DLC PREMIUM CUT SHEET IES

WPLP-50WLED-UNIV-4000K

51497698>100K>80 /wp-content/uploads/2017/10/WPLP.pdf

WPLP-50WLED-UNIV-5000K

53499594>100K>70 /wp-content/uploads/2017/10/WPLP.pdf

WPLP-80WLED-UNIV-4000K

778142106>100K>80 /wp-content/uploads/2017/10/WPLP.pdf

WPLP-80WLED-UNIV-5000K

787946102>100K>70 /wp-content/uploads/2017/10/WPLP.pdf

WPSP-20WLED-UNIV-4000K

20188795>100K>80 /wp-content/uploads/2017/10/WPSP.pdf

WPSP-20WLED-UNIV-5000K

20186491>100K>80 /wp-content/uploads/2017/10/WPSP.pdf

WPSP-30WLED-UNIV-4000K

28273897>100K>80 /wp-content/uploads/2017/10/WPSP.pdf

WPSP-30WLED-UNIV-5000K

292918100>100K>80 /wp-content/uploads/2017/10/WPSP.pdf
