THE EVOCHARGE DIFFERENCE

True Open Network Enabled

True Open Charge Point Protocol (OCPP) allows you to select the third-party network provider of your choice.

Local Load Management Helps Optimize Existing Infrastructure

Load manage main electrical circuit to avoid costly up front panel upgrades.

Cable Management Options

Charge cables on the ground present a tripping hazard and can get dirty and damaged.

EvoReel and Evo Charge retractors keep users safe and enhance the overall user experience.

Reliable and Flexible Communication Connection Options

Maximum flexibility: Non-Networked, Wi-Fi or 4G-LTE.

Backed by Over 100 Years Expertise

ILLUMUS along with our partners is a trusted partner/supplier of EV & LED solutions to trade market.

The Basics

  • Fast charging & scaling – Up to 20 units on current electrical panels (business only)
  • Works with all EVs in North America (Tesla with adapter)
  • Durable construction (NEMA 4) rated for indoor and outdoor use
  • Multiple cord lengths, cable management, and mounting options
  • ADA/OSHA compliant
  • No additional plans or permits Vs Level 3 (240V Outlet)
  • Supported, sold & serviced exclusively via the Strategic Accounts Team
level2

OFFERINGS (LEVEL 2 CHARGING STATIONS ONLY)

Features Chart
Level 2 Charger
Connector/ EVSE Level SAE J1772; AC Level 2
Max Output Rating 32A; 7.68 kW Maximum Output – For use with dedicated 40A (or greater) Supply Circuit
Alternate Adjustable Output Settings 24A; 5.76 kW Maximum Output – For use with 30A Circuit Rating 16A; 3.84 kW Maximum Output – For use with 20A Circuit Rating
Electrical Circuit/ Input Power Requirements 208-240VAC, 50/60 Hz., Single Phase; Circuit Requirement: Dedicated; Branch Breaker: Double pole; Circuit Conductors: Line 1, Line 2, Earth Ground
Input Power Connection EVSE & iEVSE: Plug-in, NEMA 6-50 Plug (Removable for Hardware Connection); iEVSE Plus: Hardwire
Operational Ratings NEMA 4, Indoor/Outdoor Rated; Temp: -22F to 122F (-30C to 50C); Humidity: 95% RH
Mounting Wall or Pedestal Installation
Dimensions EVSE: 11.0 x 7.5 x 3.2 inches (28.0 x 19.0 x 8.1 cm)
Weight EVSE 18 ft: 14 lbs., EVSE 25 ft: 15 lbs.
Display & Indicators LED Charge Status Indicators (Power/Ready, Charging, Fault)
Cable Management Type Connector/Cable Holster (Standard); EvoReel & Retractor Cable Management: (Optional)
Standards & Compliance Charging Station: UL/cUL Listed: SAE j1772, UL 2594, UL 355, CSA; EVOREEL: ETL/cETL

INDUSTRIES SERVED

  • Hospitality
    Lodging, travel & tourism, restaurants, theme parks
  • Healthcare
    Hospitals, clinics, and other healthcare facilities
  • Parking
    Parking lots and ramps
  • Workplace
    Office buildings, warehouses, manufacturing plants, multi-use and include retail applications

SUPPORTING PRODUCT LINE

EvoReel
EvoReel

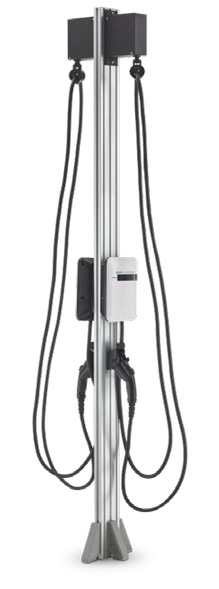

Retractor
Retractor
Single/Dual Port or Wall Mount
Single/Dual Port or Wall Mount
