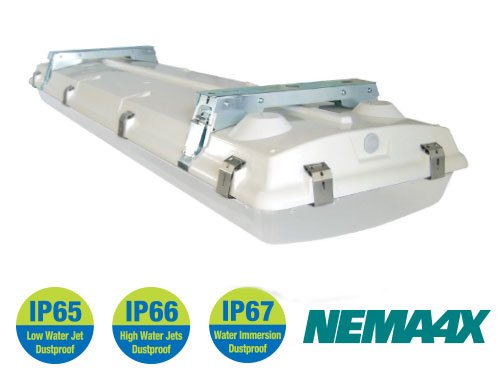

Blizzard EXT
Details
Features:
- Effective Heat Management System Standard
- 6T5-120V with HMS 45°C/113°F Max Ambient
- 6T5-277V with HMS 50°C/122°F Max Ambient
- Clear Acrylic Lens (Std) or Polycarbonate Lens (PC) Options
- 95% Miro 4 Enhanced Aluminum Roll Formed Reflectors
- V-Hooks for Chain or Cable Hanging (Standard)
- Rigid Mounting Beam (RMBSS) option allows for:
- Secure Ceiling Mount
- Dual Pendant Mount
- Marine Grade 316 Stainless Steel Latches(Std)
- Fiberglass Body with Poured in Place Gasket
- Housing Attributes:
- IP65, IP66, IP67 (Dust Tight, Low Pressure Water Jets, High Pressure Water Jets, and Immerse 1M)
- NEMA4, NSF Rated & 5VA Flame Rating
- Cold Start Ballasts Rated Down to -20° F
- ETL Wet Location Rated
Cut Sheet:
IES Files:
BLEXT-4T5-UH.IES
BLEXT-4T5-UH-N.IES
BLEXT-4T8-UH.IES
BLEXT-4T8-UH-N.IES
BLEXT-6T5-UH.IES
BLEXT-6T5-UH-N.IES
BLEXT-6T8-UH.IES
BLEXT-6T8-UH-N.IES
