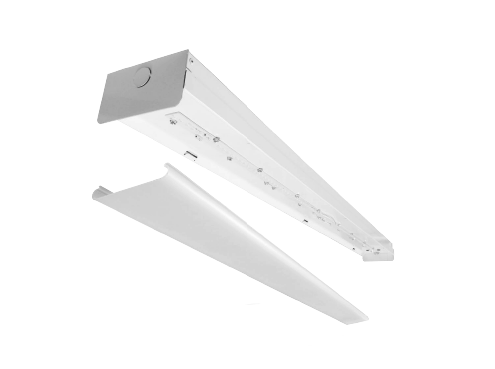

FZ Low Profile Strip
Certifications
FZ Low Profile Strip Details
-
Features:
- Durable steel construction
- Frosted acrylic lens available
- 4ft & 8ft options available
- Multiple dimming & sensor options to fully control occupied & unoccupied light levels
- 3000K, 3500K, 4000K, and 5000K color options available
- 120-277V Universal Voltage
- 0-10V dimmable driver
- FZ4-20W-40W (100% – 5%)
- FZ4-55W (100% – 1%)
- FZ8-40W-80W (100% – 5%)
- FZ8-110W (100% -1%)
- Single (4ft) or dual pendant (4ft & 8ft), surface mount and cable hanging options
- L90>54,000 hrs
- Dry and damp location listed
- ETL damp listed
- 5 Year Warranty
- DesignLights Consortium® Premium Qualified Luminaire
-
Applications:
- Schools
- Manufacturing Plants
- Warehouses or Distribution Centers
- Retail Applications
- Grocery Stores
- Stairwells (W/ USBD Sensor) (4ft only)
| Part Number | Watts | Lumens | Lm/W | L70 | CRI | DLC PREMIUM | CUT SHEET | IES |
|---|---|---|---|---|---|---|---|---|
FZ4-20W-U-40led -> commercial-led -> commerical-fz-low-profile-strip | 22 | 3635 | 163 | >100 | >80 | /wp-content/uploads/2016/11/glyphicons_ok-1.png | /wp-content/uploads/2018/08/FZ4ft-8ft.pdf | /wp-content/uploads/2018/08/FZ4-20W-U-40-ies.ies |
FZ4-20W-U-40-FRALled -> commercial-led -> commerical-fz-low-profile-strip | 22 | 3138 | 141 | >100 | >80 | /wp-content/uploads/2016/11/glyphicons_ok-1.png | /wp-content/uploads/2018/08/FZ4ft-8ft.pdf | /wp-content/uploads/2018/08/FZ4-20W-U-40-FRAL-ies.ies |
FZ4-32W-U-40led -> commercial-led -> commerical-fz-low-profile-strip | 33 | 5241 | 162 | >100 | >80 | /wp-content/uploads/2016/11/glyphicons_ok-1.png | /wp-content/uploads/2018/08/FZ4ft-8ft.pdf | /wp-content/uploads/2018/08/FZ4-32W-U-40-ies.ies |
FZ4-32W-U-40-FRALled -> commercial-led -> commerical-fz-low-profile-strip | 33 | 4386 | 135 | >100 | >80 | /wp-content/uploads/2016/11/glyphicons_ok-1.png | /wp-content/uploads/2018/08/FZ4ft-8ft.pdf | /wp-content/uploads/2018/08/FZ4-32W-U-40-FRAL-ies.ies |
FZ4-40W-U-40led -> commercial-led -> commerical-fz-low-profile-strip | 41 | 6819 | 168 | >100 | >80 | /wp-content/uploads/2016/11/glyphicons_ok-1.png | /wp-content/uploads/2018/08/FZ4ft-8ft.pdf | /wp-content/uploads/2018/08/FZ4-40W-U-40-ies.ies |
FZ4-40W-U-40-FRALled -> commercial-led -> commerical-fz-low-profile-strip | 40 | 5858 | 146 | >100 | >80 | /wp-content/uploads/2016/11/glyphicons_ok-1.png | /wp-content/uploads/2018/08/FZ4ft-8ft.pdf | /wp-content/uploads/2018/08/FZ4-40W-U-40-FRAL-ies.ies |
FZ4-55W-U-40led -> commercial-led -> commerical-fz-low-profile-strip | 54 | 8626 | 159 | >100 | >80 | /wp-content/uploads/2016/11/glyphicons_ok-1.png | /wp-content/uploads/2018/08/FZ4ft-8ft.pdf | /wp-content/uploads/2018/08/FZ4-55W-U-40-ies.ies |
FZ4-55W-U-40-FRALled -> commercial-led -> commerical-fz-low-profile-strip | 54 | 7399 | 137 | >100 | >80 | /wp-content/uploads/2016/11/glyphicons_ok-1.png | /wp-content/uploads/2018/08/FZ4ft-8ft.pdf | /wp-content/uploads/2018/08/FZ4-55W-U-40-FRAL-ies.ies |
FZ8-110W-U-40led -> commercial-led -> commerical-fz-low-profile-strip | 108 | 17128 | 159 | >100 | >80 | /wp-content/uploads/2016/11/glyphicons_ok-1.png | /wp-content/uploads/2018/08/FZ4ft-8ft.pdf | /wp-content/uploads/2018/08/FZ8-110W-U-40-ies.ies |
FZ8-110W-U-40-FRALled -> commercial-led -> commerical-fz-low-profile-strip | 108 | 14820 | 138 | >100 | >80 | /wp-content/uploads/2016/11/glyphicons_ok-1.png | /wp-content/uploads/2018/08/FZ4ft-8ft.pdf | /wp-content/uploads/2018/08/FZ8-110W-U-40-FRAL-ies.ies |
FZ8-40W-U-40led -> commercial-led -> commerical-fz-low-profile-strip | 44 | 7057 | 161 | >100 | >80 | /wp-content/uploads/2016/11/glyphicons_ok-1.png | /wp-content/uploads/2018/08/FZ4ft-8ft.pdf | /wp-content/uploads/2018/08/FZ8-40W-U-40-ies.ies |
FZ8-40W-U-40-FRALled -> commercial-led -> commerical-fz-low-profile-strip | 44 | 6125 | 140 | >100 | >80 | /wp-content/uploads/2016/11/glyphicons_ok-1.png | /wp-content/uploads/2018/08/FZ4ft-8ft.pdf | /wp-content/uploads/2018/08/FZ8-40W-U-40-FRAL-ies.ies |
FZ8-64W-U-40led -> commercial-led -> commerical-fz-low-profile-strip | 64 | 10521 | 164 | >100 | >80 | /wp-content/uploads/2016/11/glyphicons_ok-1.png | /wp-content/uploads/2018/08/FZ4ft-8ft.pdf | /wp-content/uploads/2018/08/FZ8-64W-U-40-ies.ies |
FZ8-64W-U-40-FRALled -> commercial-led -> commerical-fz-low-profile-strip | 65 | 9016 | 138 | >100 | >80 | /wp-content/uploads/2016/11/glyphicons_ok-1.png | /wp-content/uploads/2018/08/FZ4ft-8ft.pdf | /wp-content/uploads/2018/08/FZ8-64W-U-40-FRAL-ies.ies |
FZ8-80W-U-40led -> commercial-led -> commerical-fz-low-profile-strip | 82 | 13783 | 169 | >100 | >80 | /wp-content/uploads/2016/11/glyphicons_ok-1.png | /wp-content/uploads/2018/08/FZ4ft-8ft.pdf | /wp-content/uploads/2018/08/FZ8-80W-U-40-ies.ies |
FZ8-80W-U-40-FRALled -> commercial-led -> commerical-fz-low-profile-strip | 82 | 11944 | 147 | >100 | >80 | /wp-content/uploads/2016/11/glyphicons_ok-1.png | /wp-content/uploads/2018/08/FZ4ft-8ft.pdf | /wp-content/uploads/2018/08/FZ8-80W-U-40-FRAL-ies.ies |
