ILP’s BEST IN CLASS VAPOR TIGHT
WTZ Series is an industry leading vapor tight luminaire robustly designed for a wide variety of environments. Its sealed and gasketed NSF listed fiberglass enclosure is easy to service and clean, ideal for maintaining a safe environment for food and beverage processing. With an enhanced feature set including industry leading ambient operating temperatures, extremely high efficiency, three scalable fixture lengths, wide lumen range, various high impact lens options and multiple mounting options make the WTZ Series the absolute luminaire for any vapor tight application.
LUMENS
2,000 – 24,000
HIGH EFFICACY
Up to 156 lm/W
CCT
3000K – 5000K
FEATURES

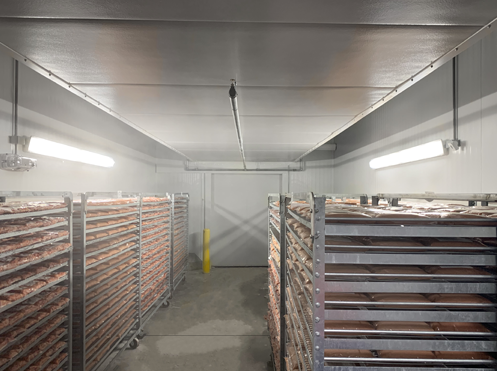

SUITABLE APPLICATIONS
- Coolers & Freezers
- Food & Beverage Preparation
- Greenhouse
- Pharmaceutical
- Healthcare
- Education
- Industrial
- Parking Garage

FACTORY INSTALLED OPTIONS
- -40°F Cold Temperature Driver
- Emergency Battery Backups
• 7W to 12W Output
• -4◦F Cold Temperature Operation
• CEC Title 20 Compliant Options - Generator Transfer Device
- 347V & 480V
- 10kV Surge Protector
- Stainless Steel Latches
- Tamper Proof Screws
- Threaded HUBs for Side Power Entry
- Cords
- Five Impact Resistant Lens Options:
• Ribbed Frosted Acrylic Std. (RAFL)
• Shallow Clear Acrylic (SACL)
• Shallow Frosted Acrylic (SAFL)
• Shallow Clear Polycarbonate (SPCL)
• Shallow Frosted Polycarbonate (SPFL)
BASIC CONTROL OPTIONS
- WLOS: On/Off
- WLOSPC: On/Off with Photocell
- USBD: User Selectable Bi-Level Dimming
- BDxx: Preset Bi-Level Dimming
- BDxxPC: Preset Bi-Level Dimming
with Photocell - MWS: On/Off Installed Integral
- MWUSBD: User Selectable Bi-Level
Dimming Integral
MOUNTING OPTIONS

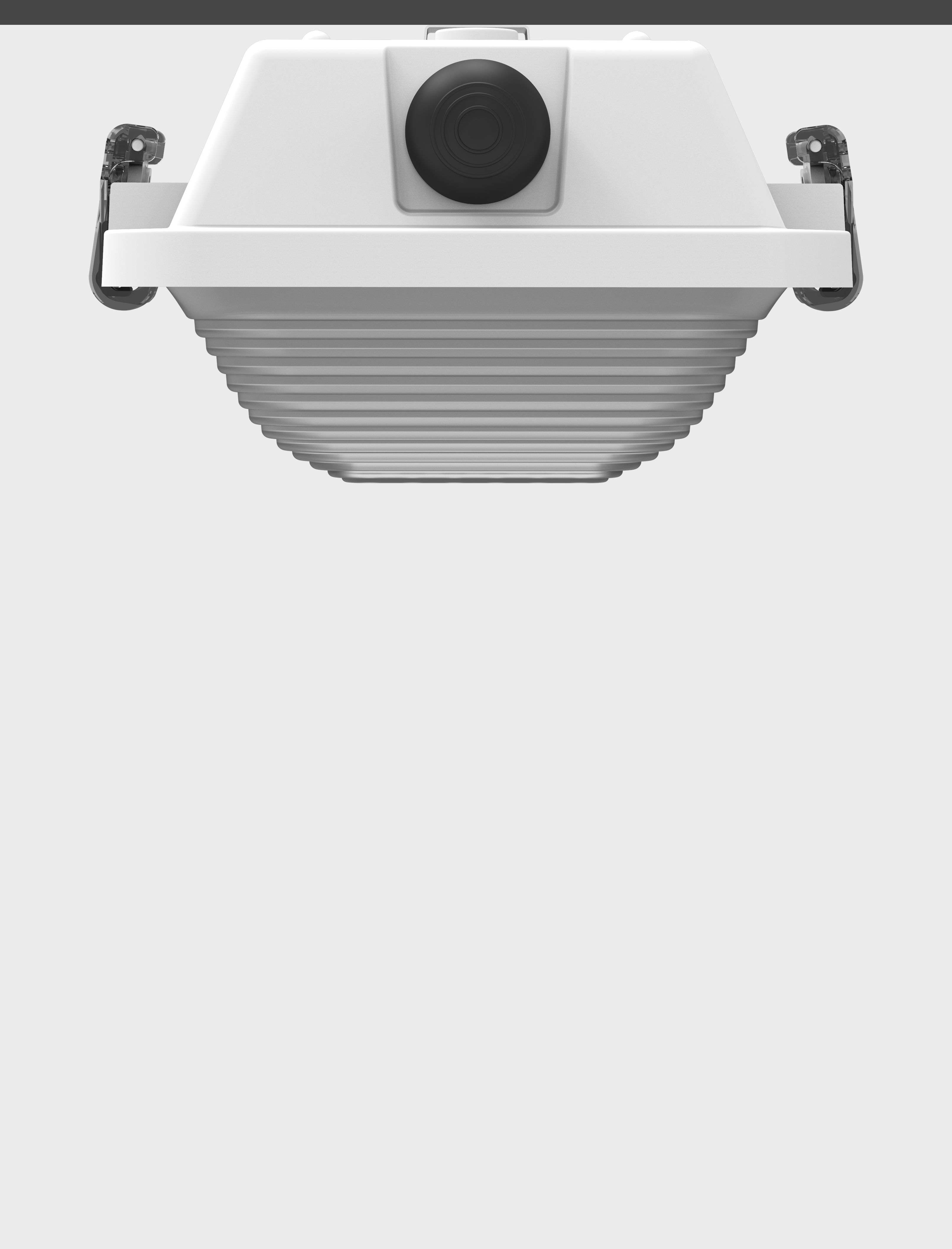

Surface Mount

Suspended Mount

Pendant Mount

45° Angle Wall Mount
