BL Series

ILP’s BEST IN CLASS VAPOR TIGHT HIGH BAY

BL Series is an industry leading luminaire designed for applications requiring a robust, durable, sealed and gasketed construction for extreme environments. The NSF listed fiberglass enclosure is easy to service and clean, ideal for maintaining a safe environment for food and beverage processing. With an enhanced feature set including industry leading ambient operating temperatures, best in class distribution options, extremely high efficiency, wide lumen range, and multiple mounting options make the BL Series the prominent choice for nearly any high bay application.

LUMENS

12,000 – 42,000

HIGH EFFICACY

Up to 168 lm/W

CCT

3000K – 5000K

FEATURES

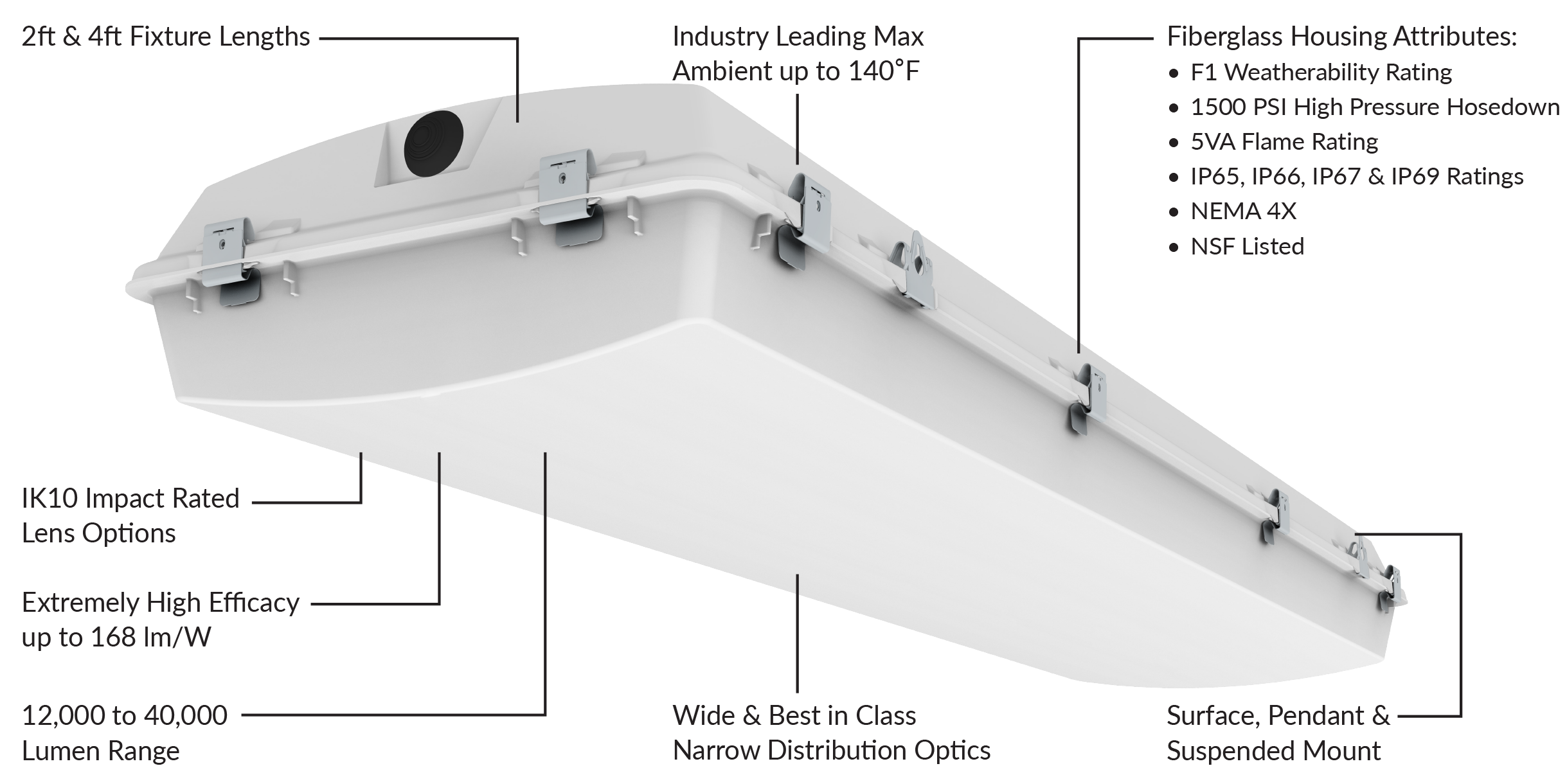

BL Features Diagram

SUITABLE APPLICATIONS

  • Food and Beverage Preparation
  • Coolers / Freezers
  • Greenhouse
  • Pharmaceutical
  • Healthcare
  • Education
  • Industrial
  • Saw Mills
  • Hockey Rinks

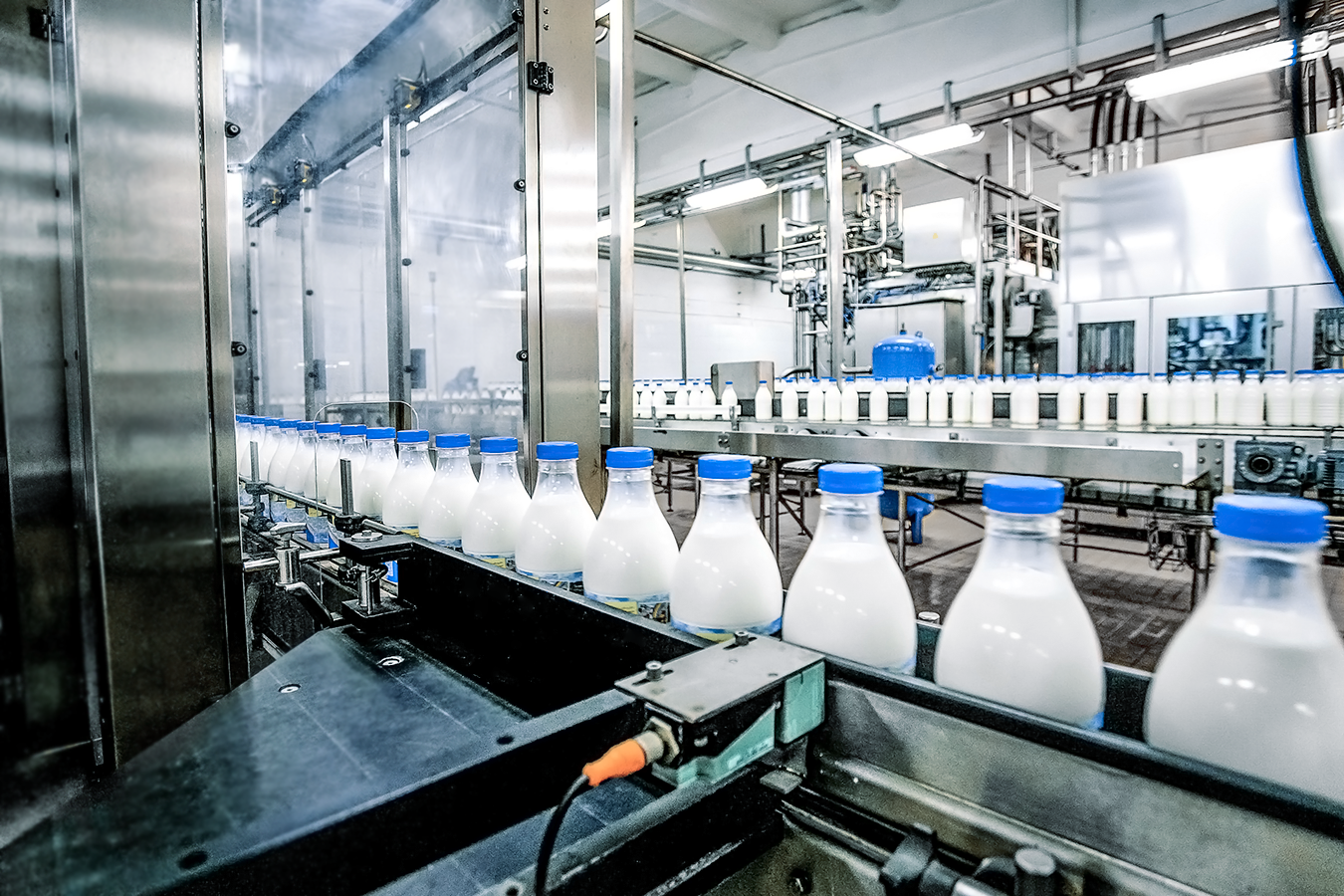

Milk Production Line Factory

OPTIONS

  • High Ambient Temperature Option
  • Emergency Battery Backups
    • 7W to 20W Output
    • -4◦F Cold Temperature Operation
    • CEC Title 20 Compliant Options
  • Generator Transfer Device
  • 347V & 480V
  • 10kV Surge Protector
  • Stainless Steel Latches
  • Tamper Proof Screws
  • Threaded HUBs for Side Power Entry
  • Cords
  • IK10 Impact Rated Lens Options:
    • Clear & Frosted Acrylic
    • Clear & Frosted Polycarbonate

BASIC CONTROL OPTIONS

  • WLOS: On/Off
  • WLOSPC: On/Off with Photocell
  • USBD: User Selectable Bi-Level Dimming
  • BDxx: Preset Bi-Level Dimming
  • BDxxPC: Preset Bi-Level Dimming
    with Photocell
  • MWS: On/Off Installed Behind Lens
  • MWUSBD: User Selectable Bi-Level
    Dimming Behind Lens

ADVANCED CONTROLS

  • EasySense
  • Enlighted
  • LeGrand

MOUNTING OPTIONS

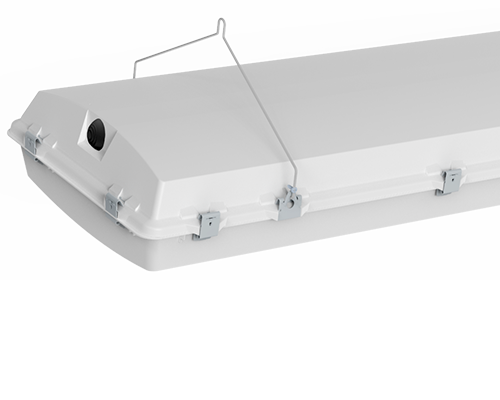

V-HOOKS

BL V Hooks

Provided standard for dual point chain or cable hanging.

BL2 &  BL4-RMBSS

BL RMBSS

Stainless Steel Rigid Mounting Beam for secure surface mounting or dual pendant mounting. Requires use of HUB 1/2 for pendant mounting.

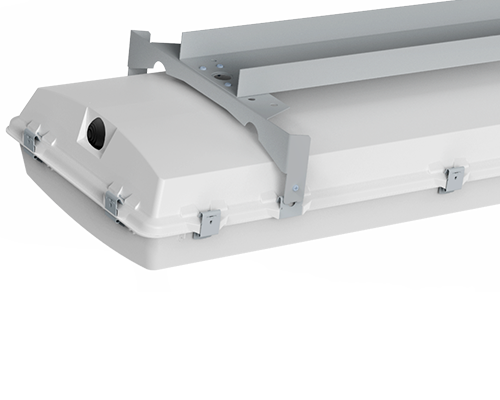

BL2 & BL4-RCMBKSS

BL RCMBKSS

Stainless Steel Rigid Center Mounting Plate for single point mounting. Requires use of HUB 3/4 and RMBSS.

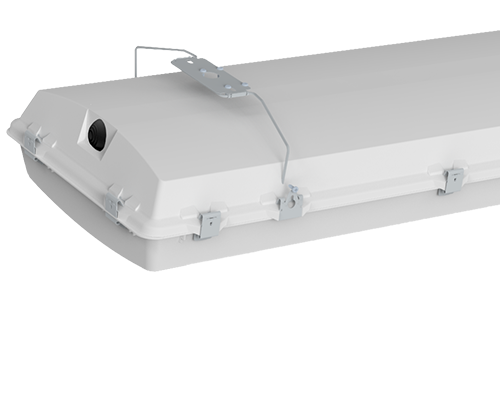

SMB KIT BL

BL SMB KIT

Surface Mount V-Clip Brackets.

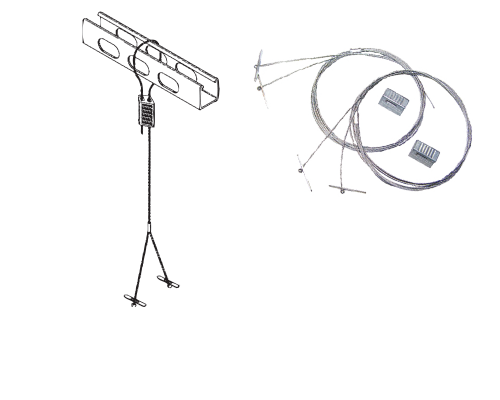

HB-XXX-18Y-PAD

BL-HB-XX-18Y-PAD

Includes 2 adjustable cable hangers available in 60″, 120″, 180″ & 240″.

HUB 1/2 & HUB 3/4

BL HUB

HUB 1/2 – 1/2″ Conduit Hub for dual pendant mounting HUB 3/4 – 3/4″ Conduit Hub for single pendant mounting.
