LIGHTING CONTROLS FOR COMMERCIAL AND INDUSTRIAL APPLICATIONS

Introducing Leviton Smart Passive Infrared (PIR) Internal and External Mount Integrated Fixture Mount Sensors. Designed to provide exceptional occupancy/vacancy sensing with a 360° field-of-view for over 8,000 square feet of coverage. Ideal for warehouses, loading bays, outdoor lighting, parking garages, gymnasiums, manufacturing facilities, and high bay applications.

These Leviton Sensors come with four lens options, including a masked version for aisleways, and allow for mesh grouping that is configurable via app from a smartphone or any other Bluetooth capable device. The easy-to-do setup enables the user to control multiple settings such as:

  • The sensitivity of the sensor
  • The coverage area
  • Timeouts
  • Daylight mode
  • Auto and manual calibration
  • Adding a security code to lock configuration settings
  • Dimming options such as high and low trim, partial-OFF, and partial-OFF timeouts

By pairing a Leviton Sensor with any of our compatible fixtures, you can take your energy savings to the next level while having complete control of your lighting environment. Order yours today!

Programming The Smart IP66 PIR Integrated Fixture Mount Sensor

This video walks the user through the process for connecting to a Leviton Smart IP66 PIR Integrated Fixture Mount Sensor using the Leviton Smart Sensor App. Users will learn how to easily create groups, configure sensors, adjust operating modes, create time outs, set daylighting modes, and more. The Leviton Smart IP66 PIR Integrated Fixture Mount Sensors are designed for use with switching or 0-10V LED dimming drivers, and fluorescent ballasts. The sensors use PIR detection technology and advanced optics to provide an exceptional Field-of-View.

Features/Benefits

  • Mesh grouping capability
    • 16 devices per group
    • Occupancy
    • Daylighting
  • Can be used to comply with IECC, ASHRAE 90.1, and 2019 Title 24, Part 6 occupancy/vacancy sensing and dimming requirements
  • IP66 rated (when installed in an appropriate IP66 rated enclosure/fixture)
  • Scheduling capability – Universal voltage models only
    • Weekly scheduling
    • Time clock or astronomical clock
    • Change level, operating mode, daylight mode
    • Models without the integral scheduling feature can be part of a group with scheduling
    • Controls LED lighting loads up to 6.7A
  • Single-level switching
  • Occupancy mode
    • Disabled (Photocell only)
    • Auto-On/Off
  • 360° field-of-view
  • Advanced configuration is made using the Leviton Smart Sensor App on any Bluetooth-enabled Android or iOS device:
    • Adjust the sensitivity of the sensor to increase or decrease coverage area
    • Adjust timeouts
    • Set and configure daylight mode

Additional Resources

Applications

  • Warehouses
  • Loading Bays
  • Outdoor Lighting
  • Parking Garages
  • Gymnasiums
  • Libraries
  • Highbay Applications

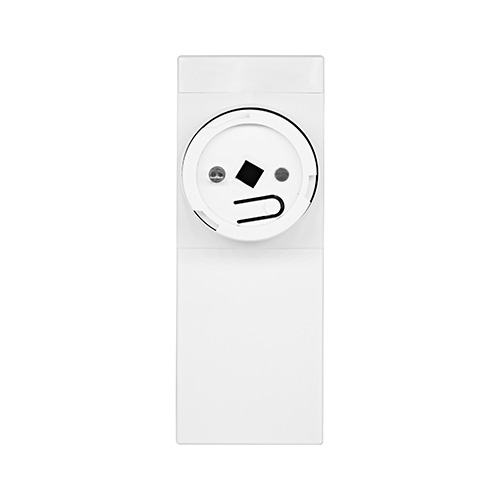

ZLD1Z

zld1z-sensor

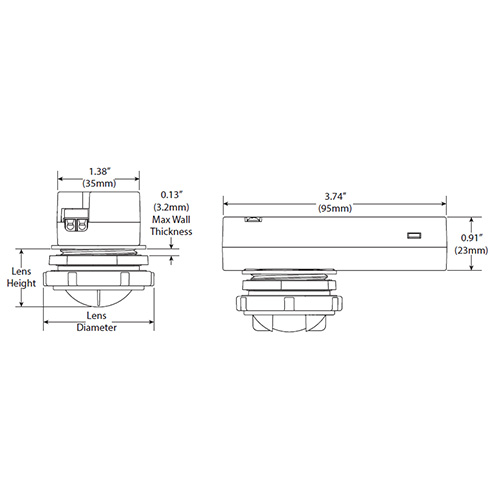

Dimensions Diagram ZLD1Z

ZLD1Z-Line-Drawing

OFD1Z

ofd1z-sensor

Dimensions Diagram OFD1Z

OFD1Z-Line-Drawing

Coverage Pattern - Low Bay Lens

low-bay-sensor-lens-coverage-pattern

Coverage Pattern - High Bay Lens

high-bay-lens-coverage-pattern

Compatible Luminaires

High Bays
Canopy/Parking Garage
Wall Mounts
Area Lights
Floods
