TRUSTED SOLUTIONS FOR HAZARDOUS LOCATIONS

ILP offers Class 1 Division 2 UL844 Listed products robustly designed to withstand the demanding rigorous conditions in Hazardous environments. These American Produced products offer the most enhanced feature set in the industry with unrivaled operating temperatures, efficacy, lumen range, and mounting options to provide you with highly versatile products you can trust to perform in the most demanding environments.

SUITABLE APPLICATIONS

  • Chemical Processing Facilities
  • Industrial & Manufacturing Plants
  • Ethanol & Petroleum Refineries
  • Wastewater & Treatment Facilities
  • Power Generation Facilities
  • Food and Beverage Preparation
  • Coolers / Freezers
  • Natatorium
industrial-water-tanks-WEB

RESOURCES

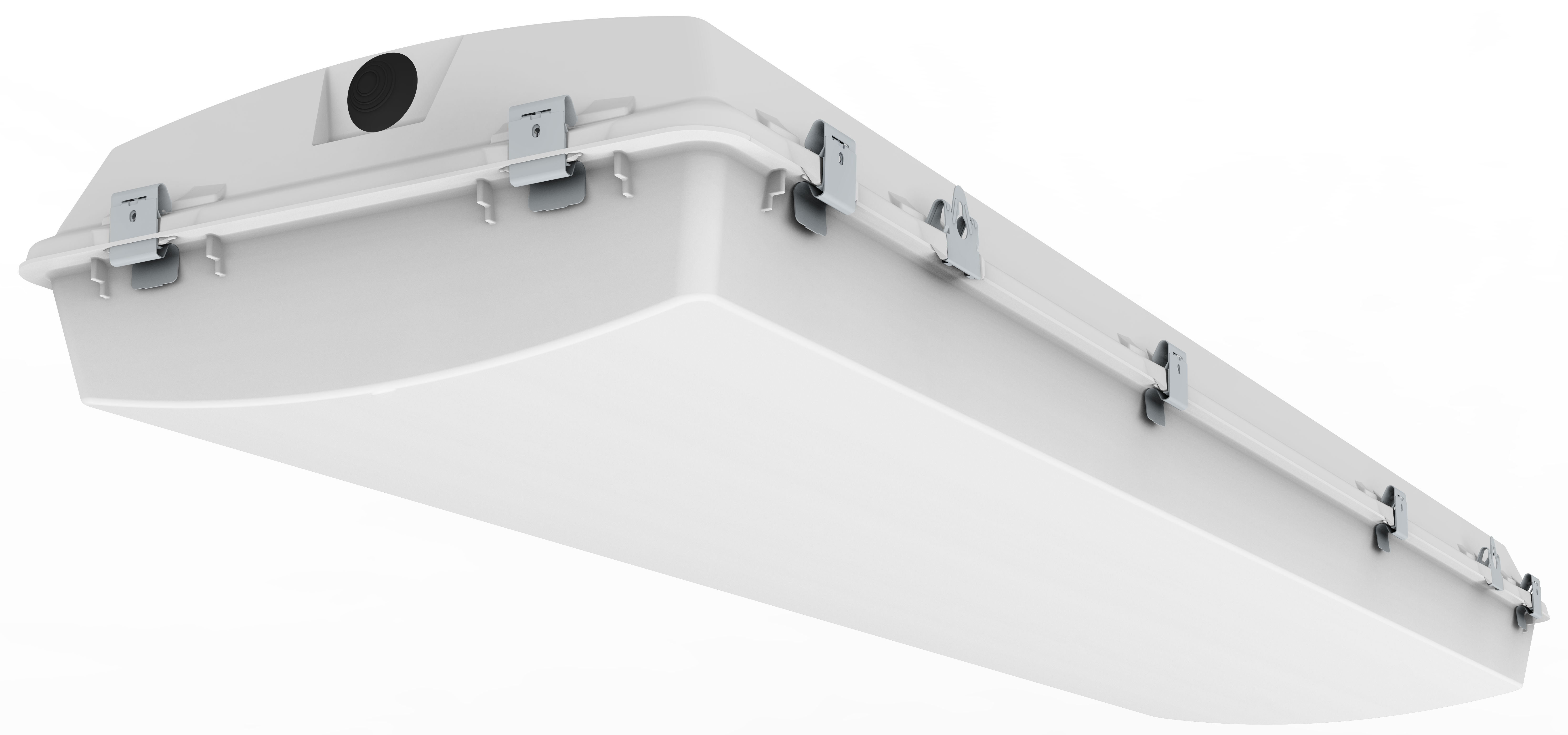

HZB VAPOR TIGHT HIGH BAY

HZB CUTSHEET

HZB PRODUCT PAGE

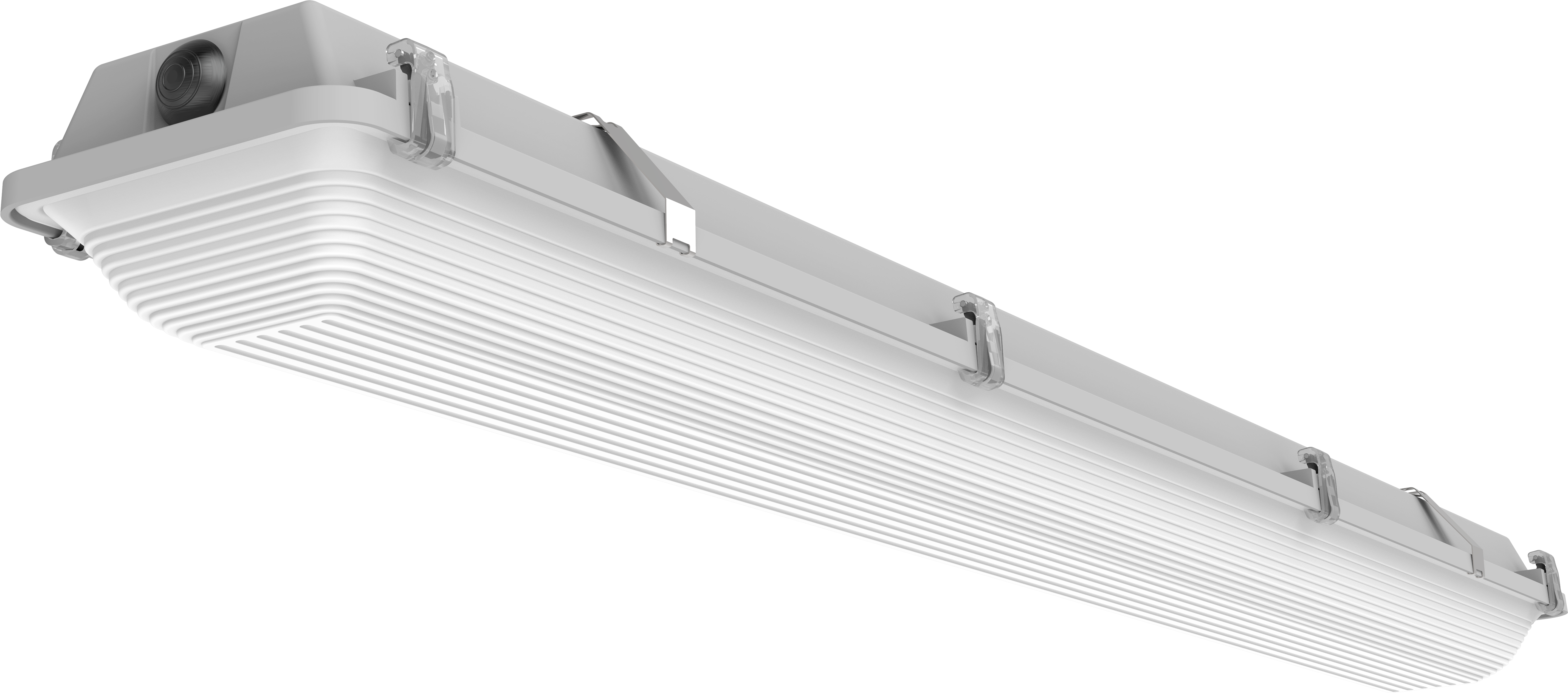

HZV LINEAR VAPOR TIGHT

HZV CUTSHEET

HZV PRODUCT PAGE

HAZARDOUS BROCHURE

HZ BROCHURE

IES FILES
LINEUP-HEADER

FEATURES & PERFORMANCE

HZV

HZB

LUMEN RANGE 2,000 – 24,000 12,000 – 42,000
EFFICACY (lm/W) UP TO 156 168
CRI >80 >80
CCT OPTIONS 30, 35, 40, 50 30, 35, 40, 50
DISTRIBUTION WIDE WIDE & NARROW
VOLTAGE 120-277V – OPT. 347-480V 120-277V – OPT. 347-480V
SIZES 2FT, 4FT & 8FT 2FT & 4FT
HOUSING LINEAR LINEAR
LENSING CLEAR & FROSTED ACRYLIC,
CLEAR & FROSTED POLYCARBONATE
CLEAR & FROSTED ACRYLIC,
CLEAR & FROSTED POLYCARBONATE
LIFE >100K >100K
AMBIENT RANGE -40°F – 131°F -40°F – 140°F
EMERGENCY YES YES
RATINGS WET, IP65, IP66, IP67, NSF WET, IP65, IP66, IP67, IP69, IK10, NSF
CERTIFICATIONS Class 1 Div 2 Groups A,B,C,D,
Class 1 Zone 2 IIA, IIB + H2, IIC,
UL844, T4 Temp Rated
Class 1 Div 2 Groups A,B,C,D,
Class 1 Zone 2 IIA, IIB + H2, IIC,
UL844, T4 Temp Rated
BAA COMPLIANT YES YES
DLC PREMIUM PREMIUM
HZV-Header

HZV FEATURES

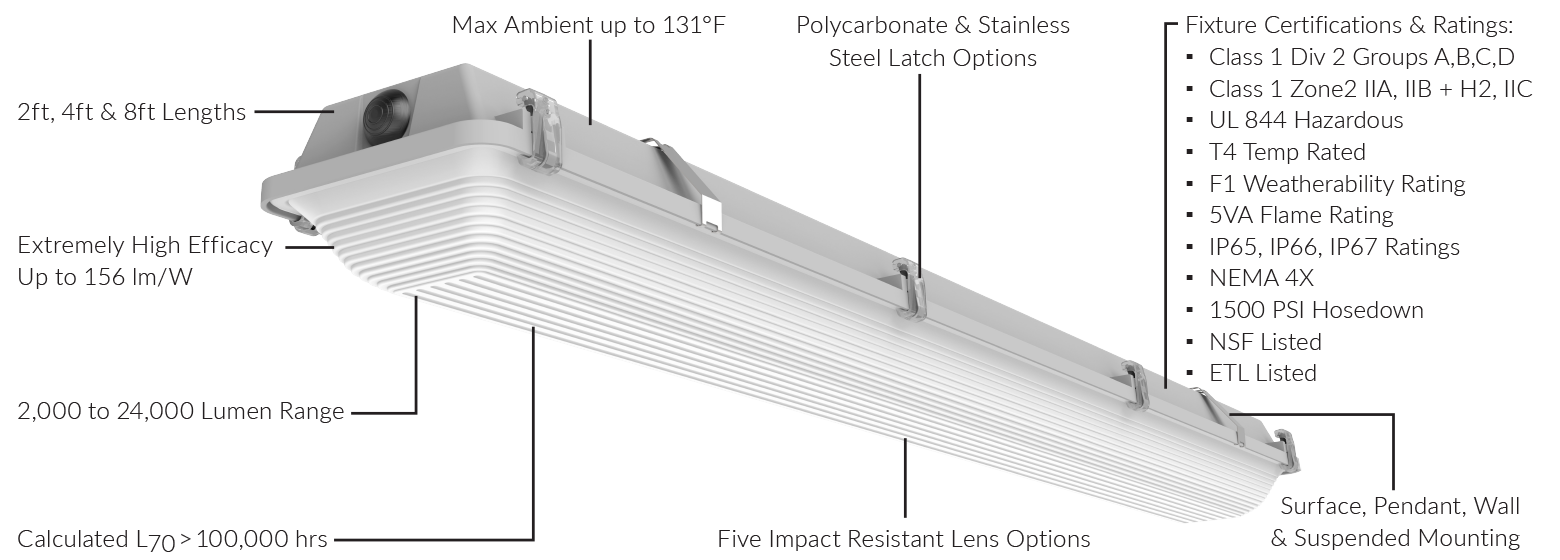

HZV-features

AVAILABLE OPTIONS

  • High Voltage 347-480V Drivers
  • Emergency Battery Backup
  • Threaded HUBs for Side Power Entry
  • Stainless Steel Latches
  • Tamper Proof Screws
  • Cords
industrial-pump-piping

MOUNTING OPTIONS

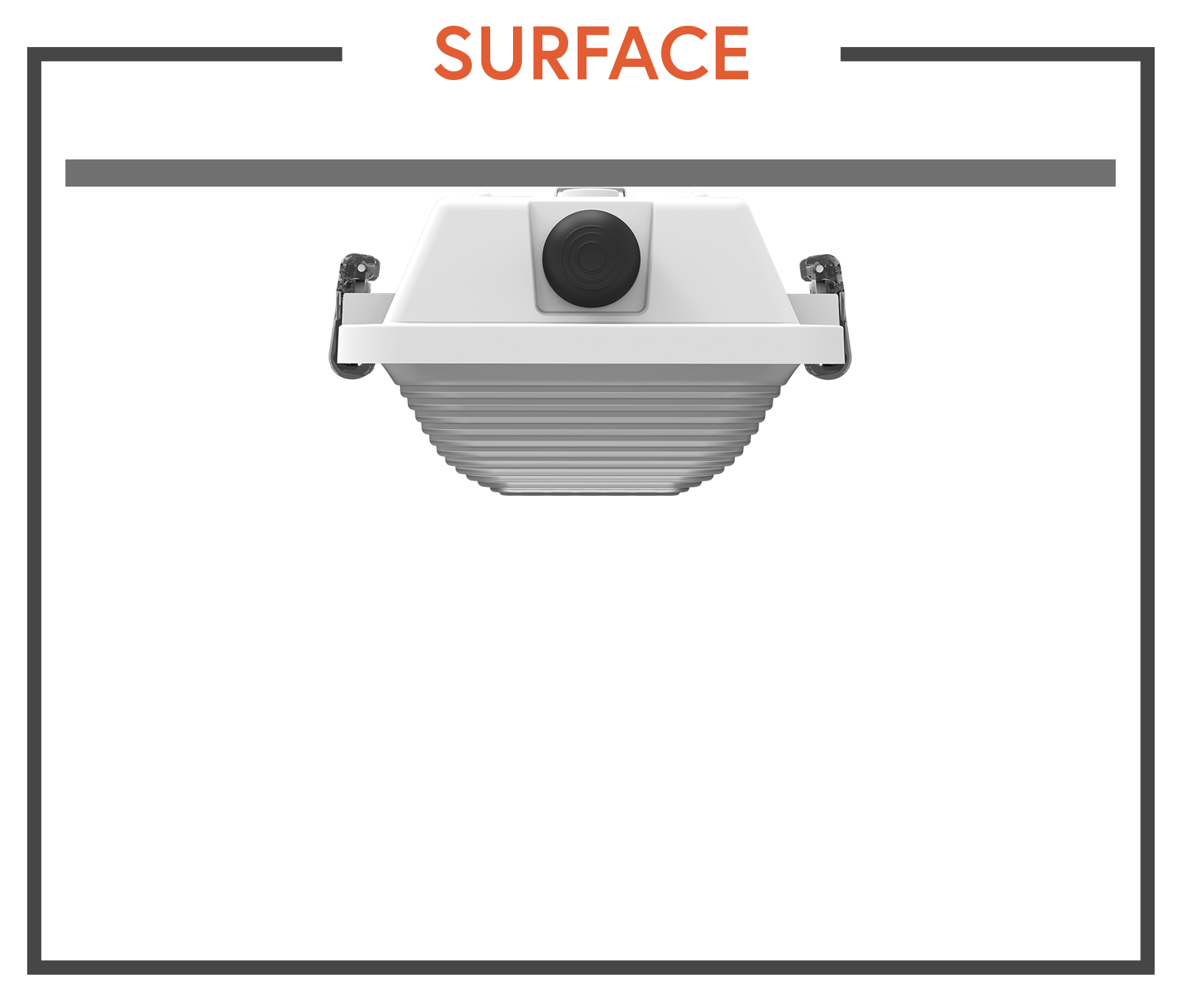

HZV-Surface

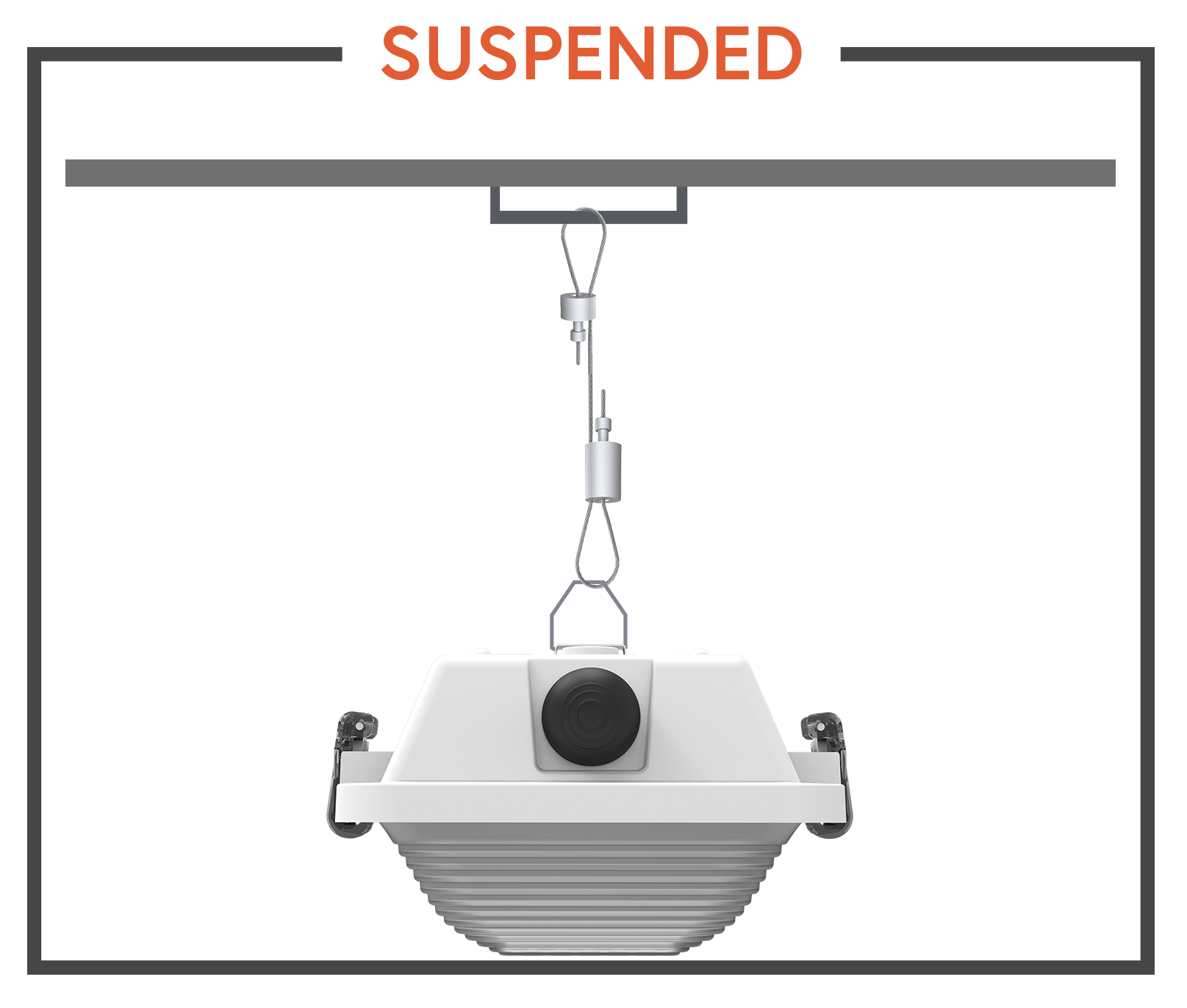

HZV-Suspended

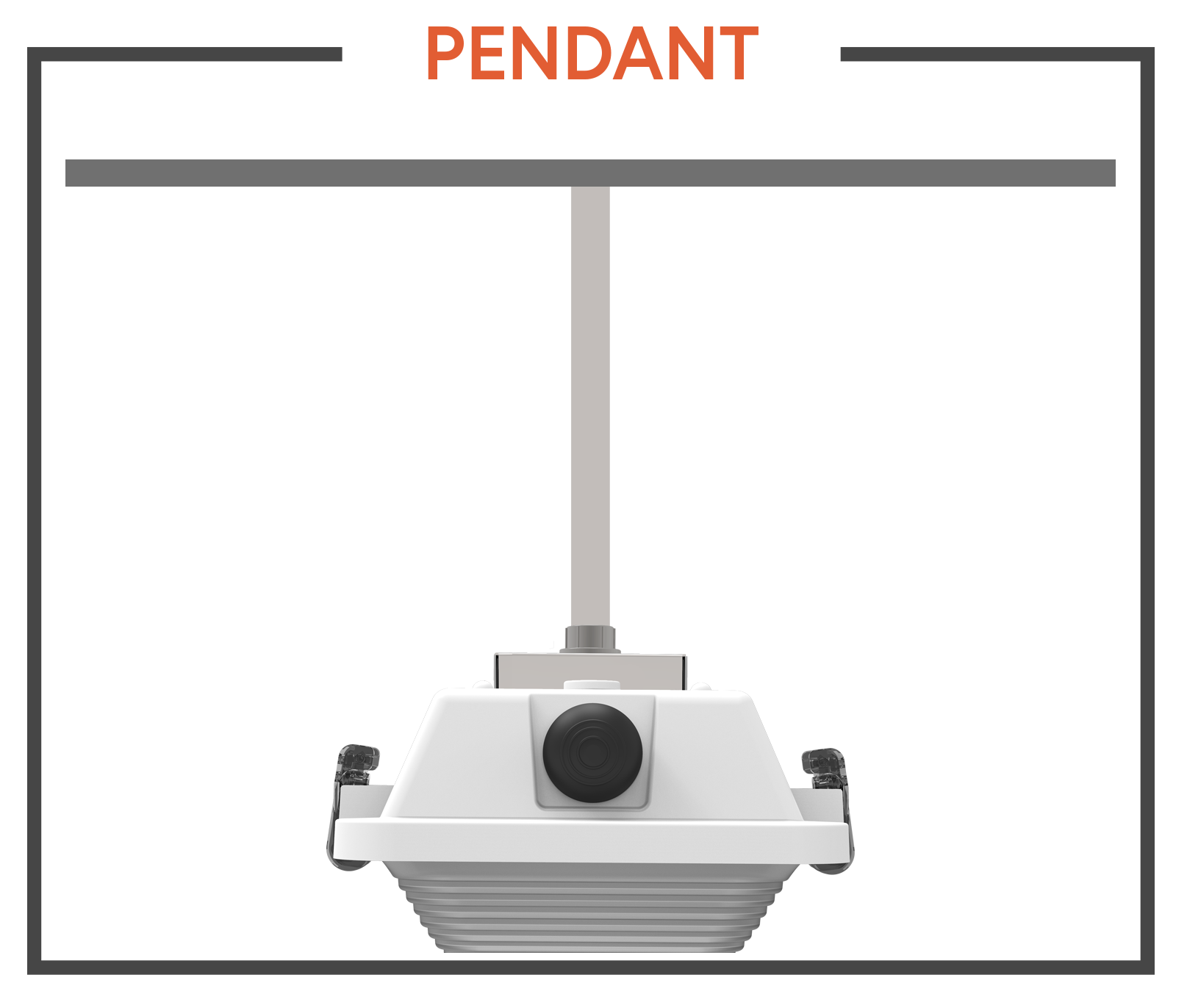

HZV-Pendant

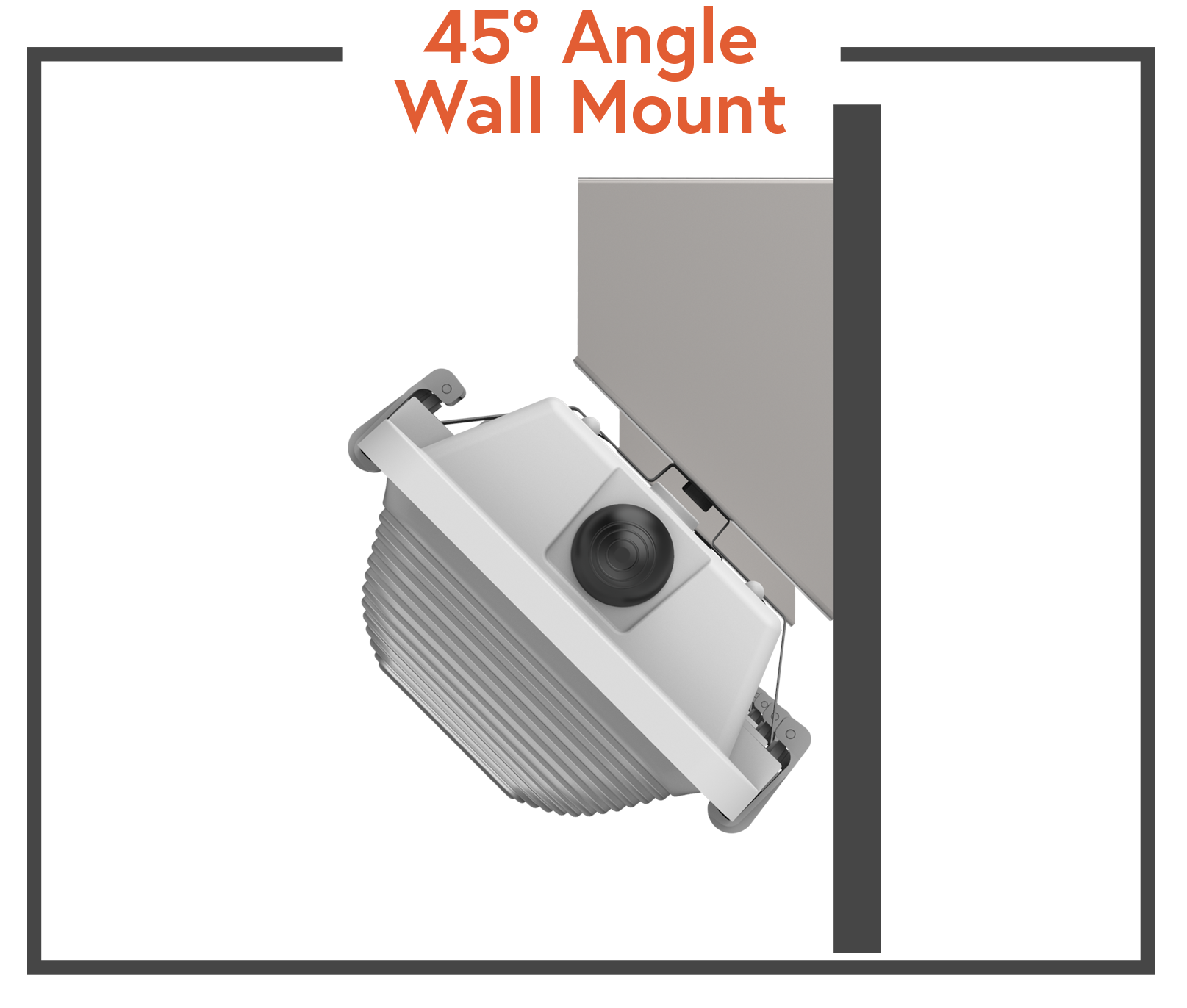

HZV-45wall
HZV-logos
HZB-Header

HZB FEATURES

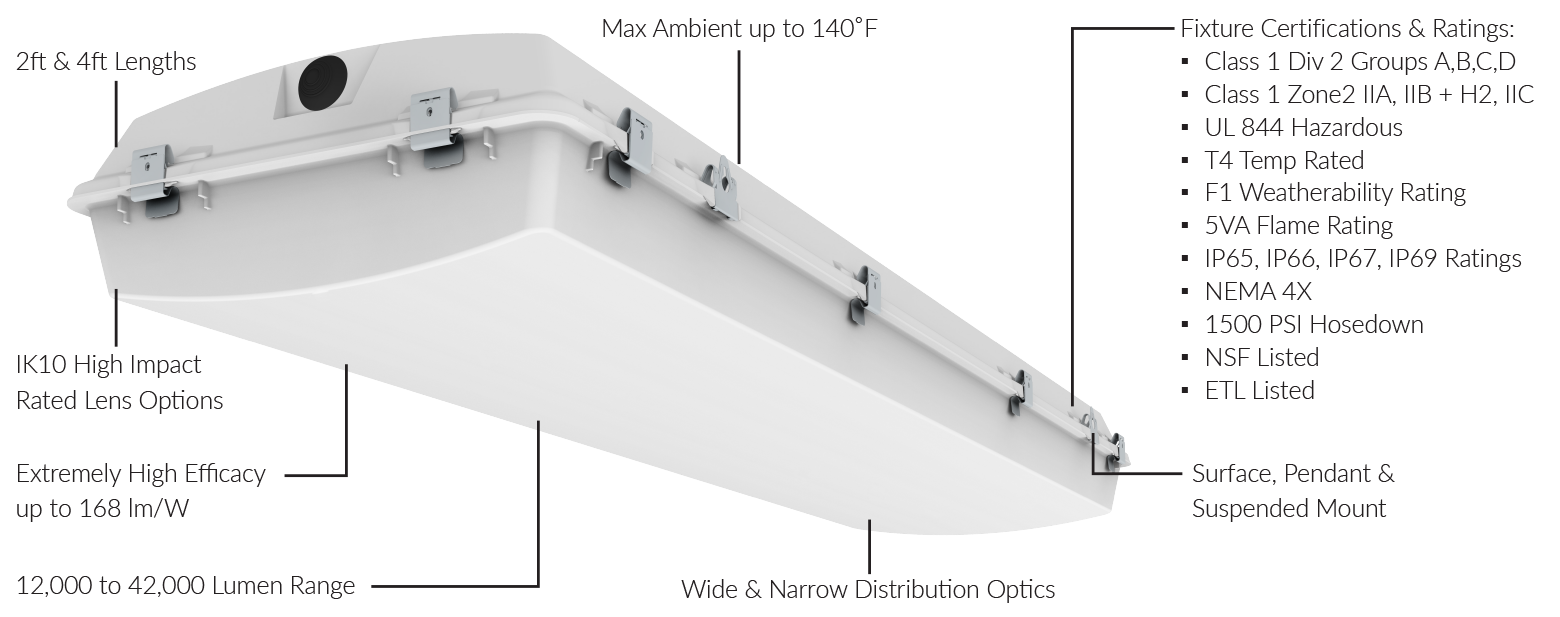

HZB-Features

AVAILABLE OPTIONS

  • High Voltage 347-480V Drivers
  • High Ambient Temperature Option
  • Emergency Battery Backup
  • Threaded HUBs for Side Power Entry
  • Stainless Steel Latches
  • Tamper Proof Screws
  • Cords
industrial-high-voltage

MOUNTING OPTIONS

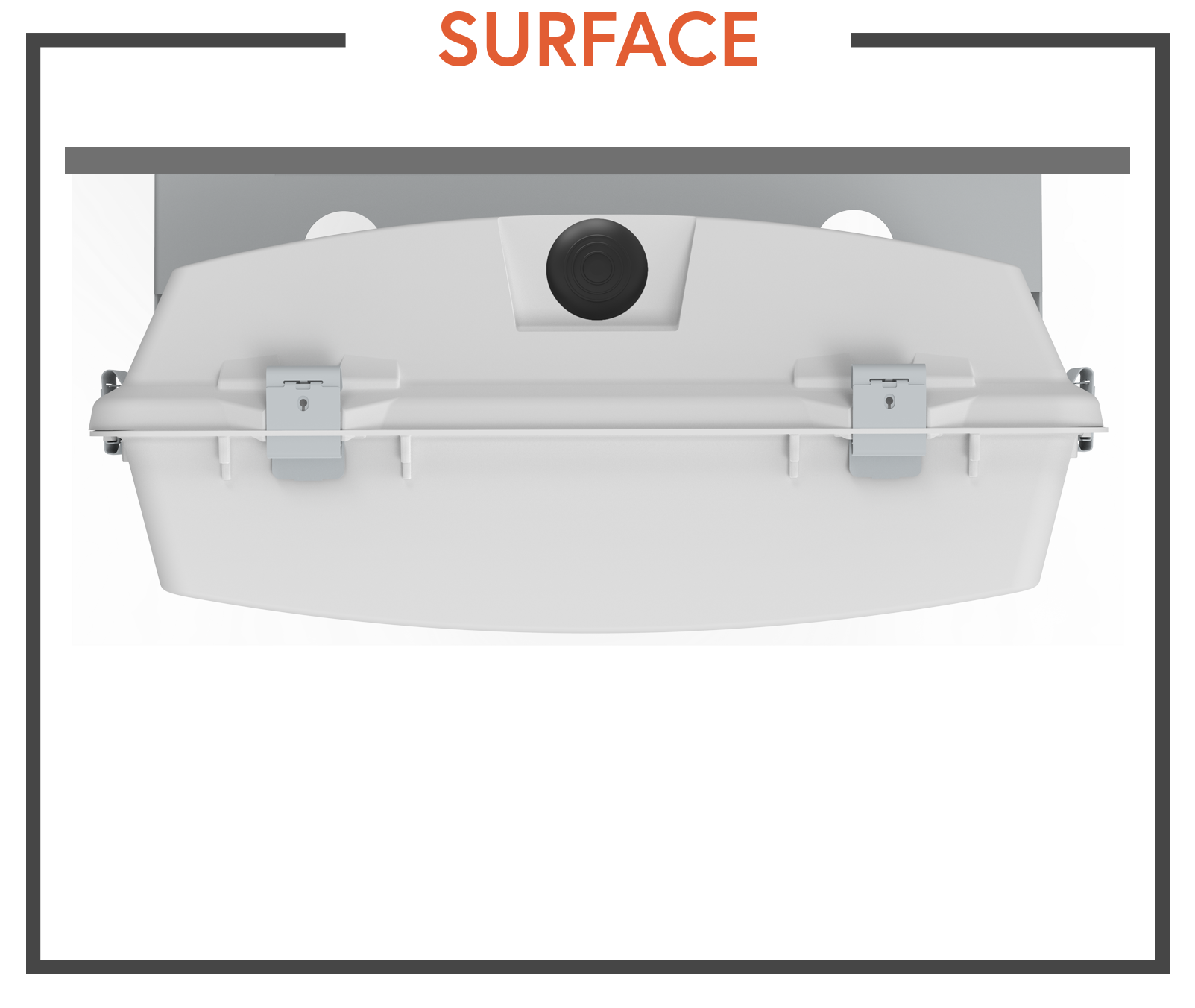

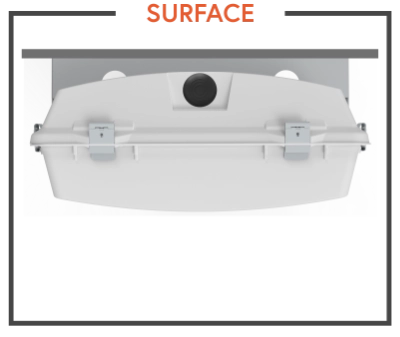

HZB-Surface

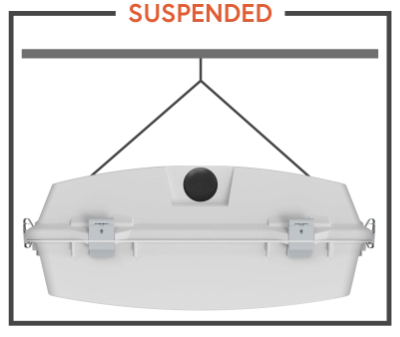

HZB-Suspended

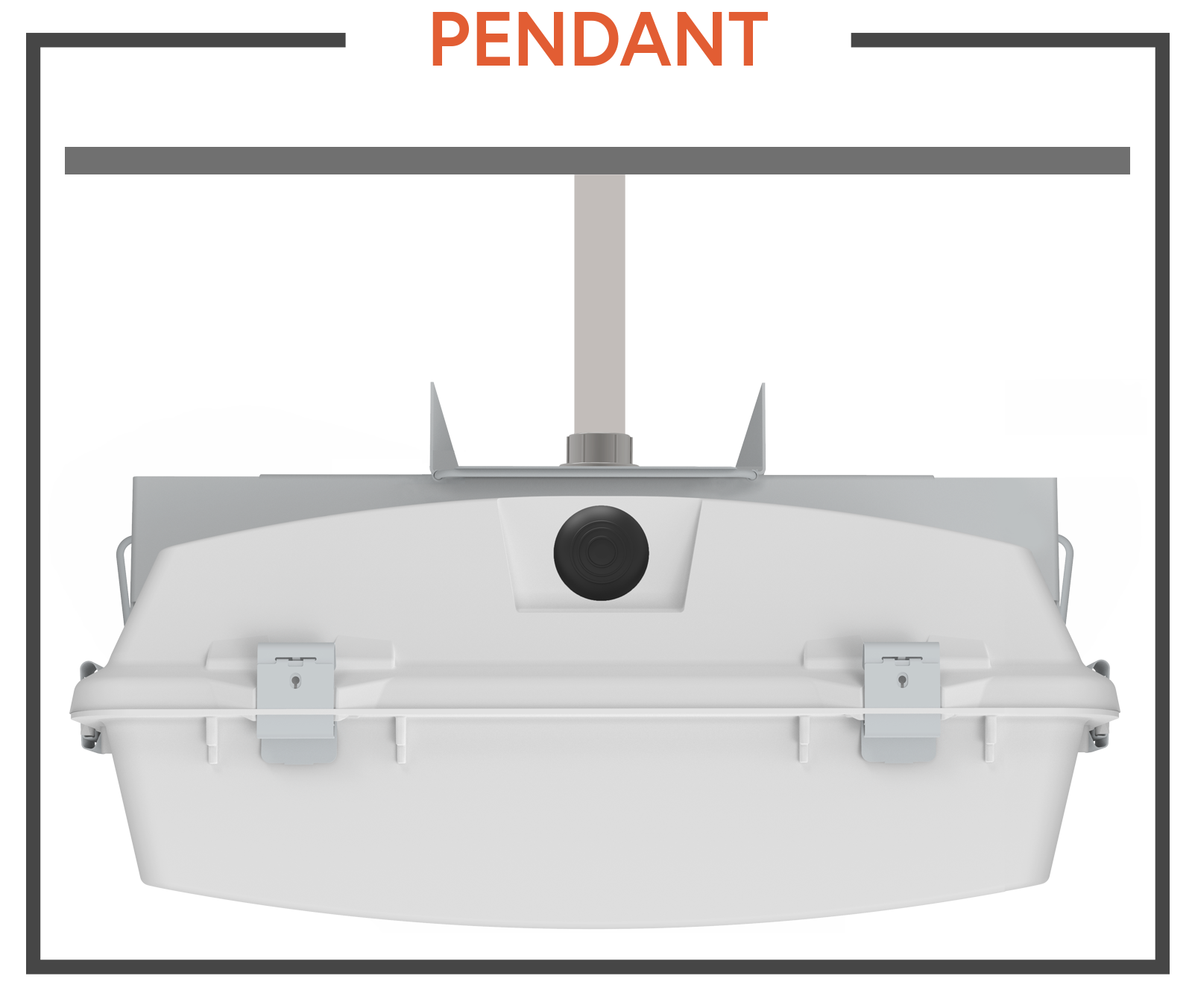

HZB-Pendant
HZB-logos

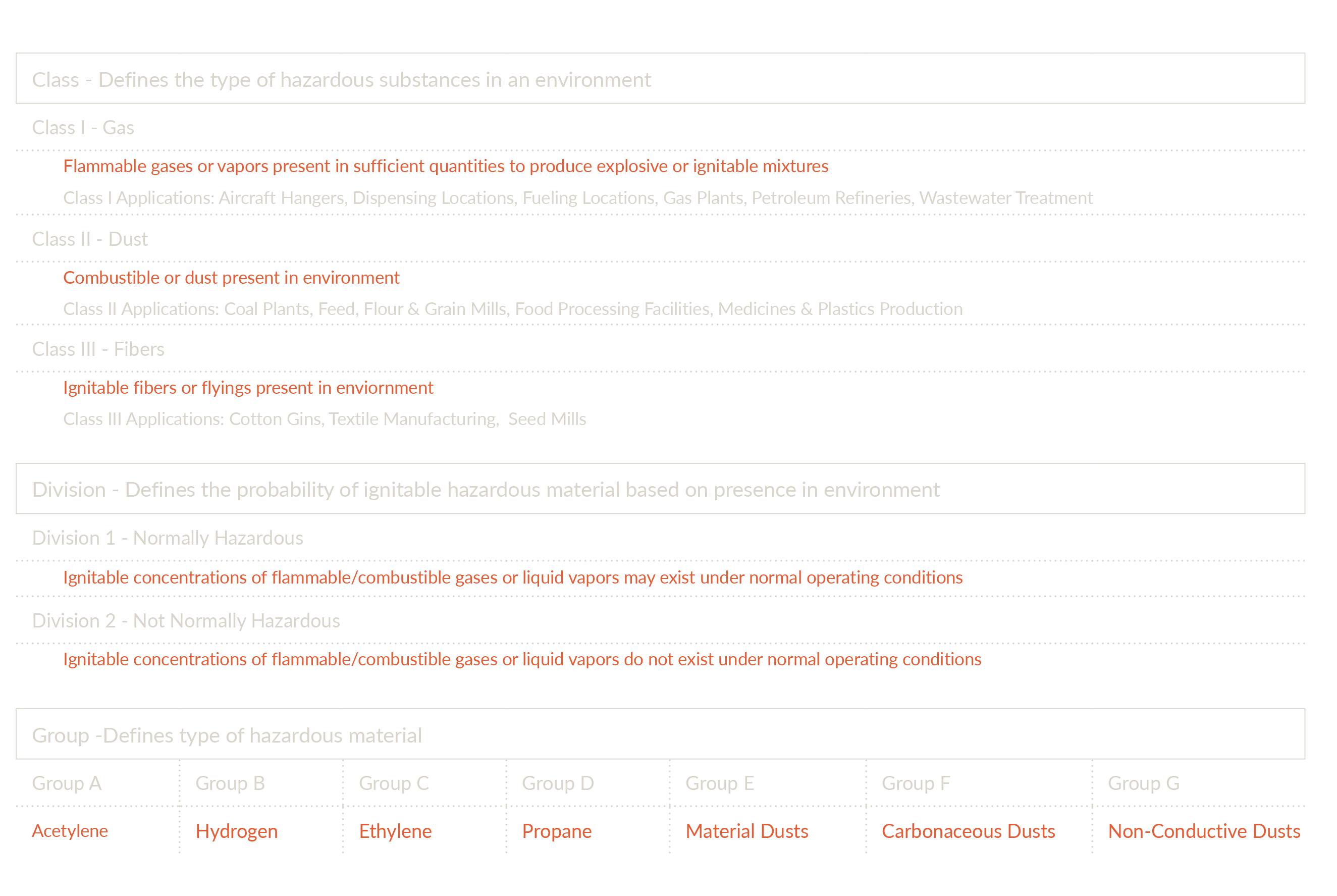

HAZARDOUS LOCATION RATINGS

ratings
