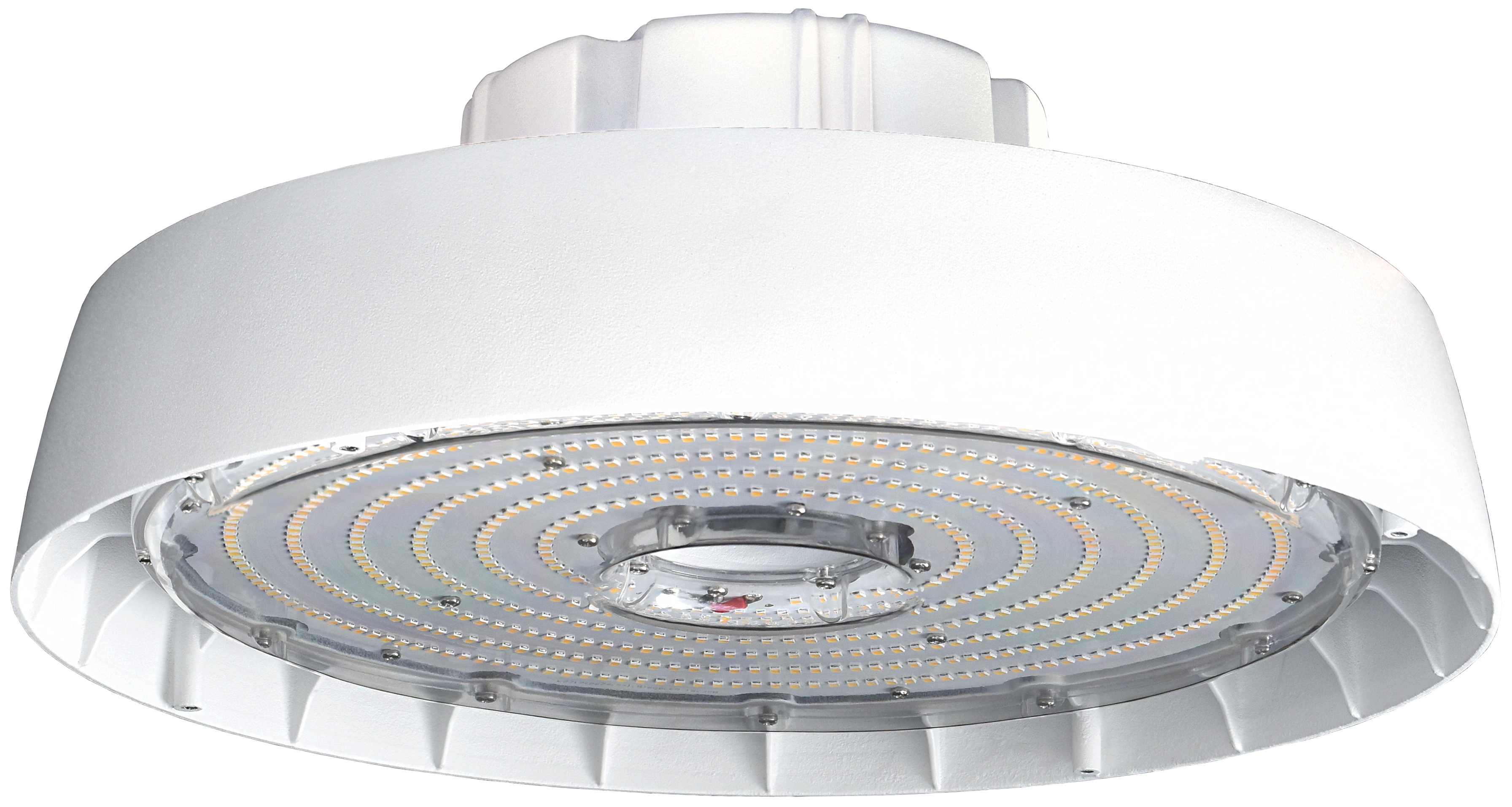

RB3

Industrial Light Products

RB3_Main_Page_Banner_Image

RB3 offers a robust & unparalleled design ideal for warehouses, wet locations, gymnasiums & food processing environments with its unique NSF listing, IP65 and IK10 ratings.

RB3-Lens-1

HOUSING

Powder coated cold forged aluminium housing is durable for the toughest of applications.

PRIMARY LENS

Standard clear polycarbonate lens with optional frosted polycarbonate for added diffusion. IK10 impact rated.

DIFFUSER OPTIONS

RB3-REFL90

REFL90

Aluminum Reflector

RB3-AD16-2

AD16

16" Acrylic Diffuser

RB3-AD22-2

AD22

22" Acrylic Diffuser

CENTER MOUNTED SENSOR

• Provides Clean Appearance
• Ensures Balanced Fixture
• Remote Control Programmed

SENSOR OPERATIONS

• On/Off
• Bi-Level Dimming
• Photocell

RB3-Sensor-2

LUMENS

13,000 - 31,000

EFFICACY

Up to 136 lm/W

CCT

4000K & 5000K

EMERGENCY & 347/480V

Available for both Damp & Wet Locations. With a proprietary design, selecting the wet location option will allow the fixture to remain IP65 rated & NSF listed.

RB3-DAMP-WET

DAMP LOCATION

(LEDBB/D, SD347/D, SD480/D)

RB3-DAMP-WET-2

WET LOCATION

(LEDBB/W, SD347/W, SD480/W)

ELECTRICAL

0-10V Dimmable Driver

4kV Built-in Surge Protection

MOUNTING

Hook (Included) / Pendant

Cable / Surface

ADDITIONAL OPTIONS

Cords (6ft Included)

Wire Cage
