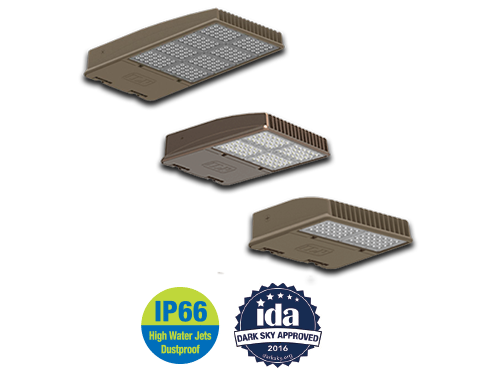

Area Light

Certifications

Area Light Details

    • Features:

      • Sleek Low Profile Die Cast Aluminum Housing
      • Type II, III, IV, & VS Optics Available
      • Tool-less Hinged Drop Down Driver Access
      • Universal Pole Mounting Bracket Available
      • Swappable Driver Cover
      • 0-10V Dimmable Driver (100% – 5%)
      • IP66 Rated
      • ETL Wet Location Rated
      • IDA Approved Dark Sky
      • 5 Yr Warranty
      • DesignLights Consortium® Qualified Luminaire

    • Applications:

      • Parking Lots
      • Roadways
      • Car Dealerships
      • Shopping Centers

Part Number Watts Lumens Lm/W L70 CRI DLC PREMIUM CUT SHEET IES

AL-100WLED-UNIV-40-T2

106.112415117>100>70 /wp-content/uploads/2017/03/AL-100WLED.pdf/wp-content/uploads/2016/11/AL-180WLED-UNIV-40-T2-IES.ies

AL-100WLED-UNIV-40-T3

106.112278115.7>100>70 /wp-content/uploads/2017/03/AL-100WLED.pdf/wp-content/uploads/2017/01/AL-100WLED-UNIV-40-T3-IES.ies

AL-100WLED-UNIV-40-T4

106.111884112>100>70 /wp-content/uploads/2017/03/AL-100WLED.pdf/wp-content/uploads/2017/01/AL-100WLED-UNIV-40-T4-IES.ies

AL-100WLED-UNIV-40-T5S

106.112223115.2>100>70 /wp-content/uploads/2017/03/AL-100WLED.pdf/wp-content/uploads/2017/01/AL-100WLED-UNIV-40-T5S-IES.ies

AL-140WLED-UNIV-40-T2

13715917115>100>70 /wp-content/uploads/2017/03/AL-140WLED.pdf/wp-content/uploads/2016/11/AL-140WLED-UNIV-40-T2-IES.ies

AL-140WLED-UNIV-40-T3

13716123117>100>70 /wp-content/uploads/2017/03/AL-140WLED.pdf/wp-content/uploads/2016/11/AL-140WLED-UNIV-40-T3-IES.ies

AL-140WLED-UNIV-40-T4

13715354111>100>70 /wp-content/uploads/2017/03/AL-140WLED.pdf/wp-content/uploads/2016/11/AL-140WLED-UNIV-40-T4-IES.ies

AL-140WLED-UNIV-40-T5S

13715890115>100>70 /wp-content/uploads/2017/03/AL-140WLED.pdf/wp-content/uploads/2016/11/AL-140WLED-UNIV-40-T5S.ies

AL-180WLED-UNIV-40-T2

17720662116>100>70 /wp-content/uploads/2017/03/AL-180WLED.pdf/wp-content/uploads/2016/11/AL-180WLED-UNIV-40-T2-IES.ies

AL-180WLED-UNIV-40-T3

17720429115>100>70 /wp-content/uploads/2017/03/AL-180WLED.pdf/wp-content/uploads/2016/11/AL-180WLED-UNIV-40-T3-IES.ies

AL-180WLED-UNIV-40-T4

17719931112>100>70 /wp-content/uploads/2017/03/AL-180WLED.pdf/wp-content/uploads/2016/11/AL-180WLED-UNIV-T4-IES.ies

AL-180WLED-UNIV-40-T5S

17720628116>100>70 /wp-content/uploads/2017/03/AL-180WLED.pdf/wp-content/uploads/2016/11/AL-180WLED-UNIV-T5S-IES.ies

AL-320WLED-UNIV-40-T2

31438431122>100>70 /wp-content/uploads/2017/03/AL-320WLED.pdf/wp-content/uploads/2017/03/AL-320WLED-UNIV-40-T2.ies

AL-320WLED-UNIV-40-T3

31437452119>100>70 /wp-content/uploads/2017/03/AL-320WLED.pdf/wp-content/uploads/2017/03/AL-320WLED-UNIV-40-T3.ies

AL-320WLED-UNIV-40-T4

31437352119>100>70 /wp-content/uploads/2017/03/AL-320WLED.pdf/wp-content/uploads/2017/03/AL-320WLED-UNIV-40-T4.ies

AL-320WLED-UNIV-40-T5S

31438401122>100>70 /wp-content/uploads/2017/03/AL-320WLED.pdf/wp-content/uploads/2017/03/AL-320WLED-UNIV-40-T5S.ies

AL-70WLED-UNIV-40-T2

70.38380119.2>100>70 /wp-content/uploads/2017/03/AL-70WLED.pdf/wp-content/uploads/2017/01/AL-70WLED-UNIV-40-T2-IES.ies

AL-70WLED-UNIV-40-T3

70.38306118.2>100>70 /wp-content/uploads/2017/03/AL-70WLED.pdf/wp-content/uploads/2017/01/AL-70WLED-UNIV-40-T3-IES.ies

AL-70WLED-UNIV-40-T4

70.37939112.9>100>70 /wp-content/uploads/2017/03/AL-70WLED.pdf/wp-content/uploads/2017/01/AL-70WLED-UNIV-40-T4-IES.ies

AL-70WLED-UNIV-40-T5S

70.38248117.3>100>70 /wp-content/uploads/2017/03/AL-70WLED.pdf/wp-content/uploads/2017/01/AL-70WLED-UNIV-40-T5S-IES.ies
